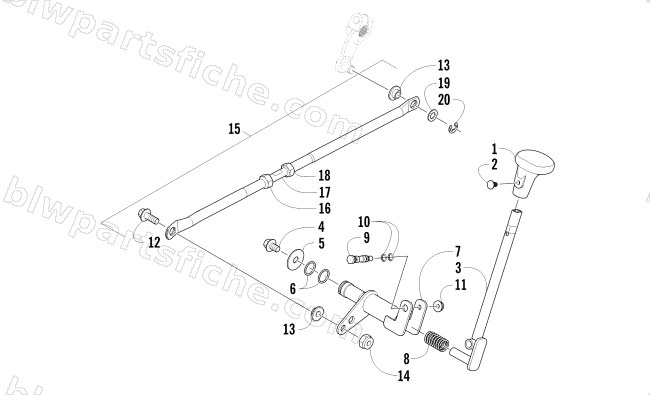

SHIFT LEVER ASSEMBLY
2016 ALTERRA 400
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0402-843 | KNOB,SHIFT | 1 | $16.49 | |
| 2 | 0423-345 | CLIP,PUSH | 1 | $0.95 | |
| 4 | 3304-544 | BOLT FLANGE 8*12 | 1 | $1.78 | |
| 5 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 6 | 0423-299 | O-RING,-016 (5/8X3/4X1/16) | 1 | $1.23 | |
| 7 | 3306-317 | AXLE WELMENT | 1 | $30.95 | |
| 8 | 0402-678 | SPRING,SHIFT,LEVER | 1 | $10.97 | |
| 9 | 0402-675 | AXLE,PIVOT,SHAFT | 1 | $20.63 | |
| 10 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 11 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 12 | 3313-821 | BOLT FLANGE 6MM | 1 | $3.02 | |
| 13 | 3323-037 | BUSHING,SHIFT | 1 | $8.21 | |
| 14 | 3305-396 | NUT FLANGE 6MM | 1 | $1.09 | |
| 15 | 3306-319 | ROD,LINKAGE-REVERSE | 1 | $58.95 | |
| 16 | 3303-327 | NUT HEX LH 10MM | 1 | $1.50 | |
| 17 | 3313-278 | ADJUSTER,SHIFT LINKAGE | 1 | $20.63 | |
| 18 | 3313-822 | NUT HEX 10MM (B) | 1 | $0.81 | |
| 19 | 3304-138 | R/B 3323-163 | 1 | $1.95 | |
| 20 | 3313-766 | E-RING | 1 | $1.50 |
