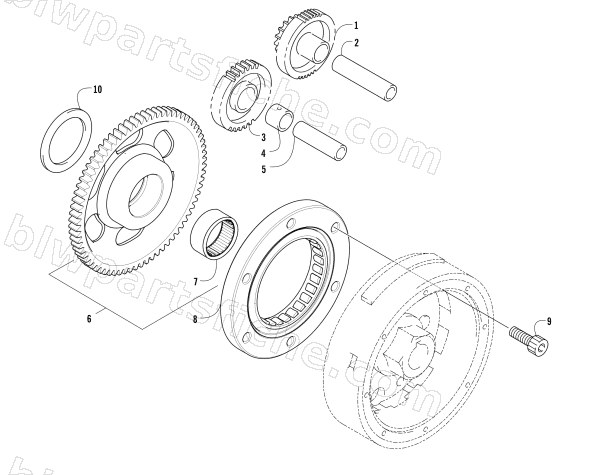

STARTER CLUTCH ASSEMBLY
2016 700 MUD PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0815-033 | GEAR,STARTER-IDLER (44T/14T SC) | 1 | $100.95 | |
| 2 | 0829-031 | SHAFT,STARTER GEAR,12X58.5 | 1 | $10.97 | |
| 3 | 0815-002 | GEAR,STARTER IDLER-27T- NO. 2 | 1 | $82.95 | |
| 4 | 0815-003 | SPACER, STARTER IDLER GEAR NO. 2 | 1 | $4.82 | |
| 5 | 0829-032 | SHAFT,STARTER GEAR,12X44.7 | 1 | $20.63 | |
| 6 | 0815-004 | GEAR,STARTER CLUTCH-73T-ASSY | 1 | $231.95 | |
| 7 | 0832-079 | BEARING,NEEDLE ROLLER-31X39X18 | 1 | $30.95 | |
| 8 | 0802-035 | CLUTCH, ONE WAY W/ HUB - ASSEMBLY | 1 | $252.95 | |
| 9 | 0826-069 | SCREW, TORX SOCKET HEAD, M8 x 1.25 x 20 | 1 | $1.50 | |
| 10 | 0828-094 | WASHER,STEEL 30 X 50 X 2.5 | 1 | $6.75 |
