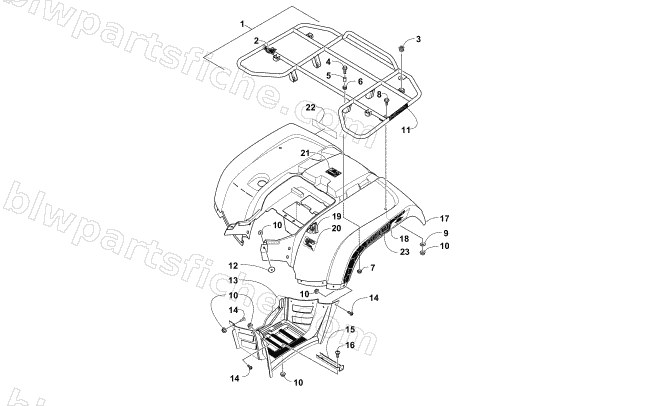

REAR RACK, BODY PANEL, AND FOOTWELL ASSEMBLIES
2016 700 MUD PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-125 | RACK,REAR W/FENCE-ASSEMBLY | 1 | $405.95 | |
| 2 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 12 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 13 | 1406-356 | FOOTWELL,AUTO-RH | 1 | $105.95 | |
| 13 | 2406-429 | R/B 6406-763 | 1 | $99.95 | |
| 14 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 15 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 16 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 17 | 7506-045 | FENDER,REAR-MATTE BLACK-ASSY | 1 | $876.95 | |
| 18 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 18 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 19 | 0470-658 | SHIELD,HEAT-BATTERY BOX | 1 | $2.61 | |
| 20 | 4411-836 | DECAL,WARNING-TIRE PRESSURE | 1 | $6.47 | |
| 21 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 |
