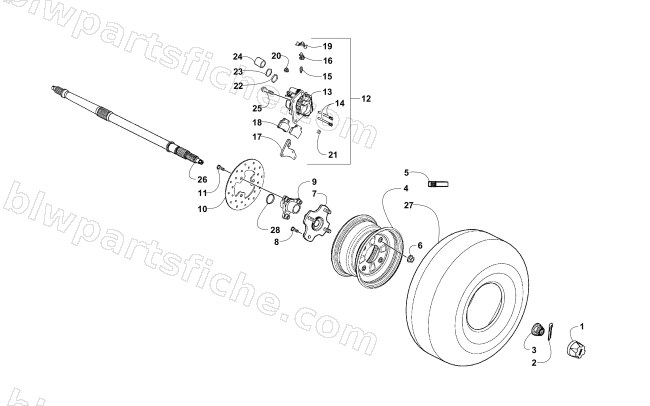

2016 Arctic Cat 300 2X4 UTILITY — REAR WHEELS, AXLE, AND BRAKE ASSEMBLY
2016 300 2X4 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-931 | CAP WHEEL | 1 | $10.97 | |
| 2 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 4 | 3306-886 | RIM COMP RR WHEEL | 1 | $100.95 | |
| 5 | 3304-562 | VALVE RIM (TR412) | 1 | $12.35 | |
| 6 | 3304-028 | NUT WHEEL | 1 | $2.61 | |
| 7 | 3306-749 | HUB ASSY RR WHEEL (LEFT SIDE) | 1 | $102.95 | |
| 7 | 3304-296 | CONNECTOR RR WHEEL | 1 | $90.95 | |
| 8 | 3304-014 | BOLT CONNECTOR | 1 | $3.02 | |
| 9 | 3303-893 | HUB BRAKE DISK | 1 | $169.95 | |
| 10 | 3303-913 | DISK FR BRK | 1 | $112.95 | |
| 11 | 3304-015 | BOLT STEP HOLDER 8*24 | 1 | $2.33 | |
| 12 | 3306-205 | CALIPER ASSY RR | 1 | $365.95 | |
| 12 | 3306-206 | CALIPER ASSY RR | 1 | $292.95 | |
| 14 | 3304-326 | PIN HANGER | 1 | $6.89 | |
| 15 | 3304-302 | SCREW BLEEDER | 1 | $3.30 | |
| 16 | 3304-303 | CAP BLEEDER | 1 | $3.02 | |
| 17 | 3303-911 | BRACKET RR | 1 | $58.95 | |
| 18 | 3303-908 | PAD SET | 1 | $58.95 | |
| 19 | 3304-315 | SPRING PAD | 1 | $4.82 | |
| 20 | 3304-322 | BOOT A | 1 | $3.16 | |
| 21 | 3304-329 | BUSH PIN | 1 | $5.37 | |
| 22 | 3305-380 | SEAL PISTON (FOOT BRAKE) | 1 | $16.49 | |
| 22 | 3306-191 | SEAL PISTON | 1 | $16.49 | |
| 23 | 3305-377 | DUST SEAL (FOOT BRAKE) | 1 | $4.13 | |
| 23 | 3303-910 | DUST SEAL (HAND BRAKE) | 1 | $10.97 | |
| 24 | 3304-314 | PISTON (FOOT BRAKE) | 1 | $58.95 | |
| 24 | 3303-909 | PISTON, CALIPER (HAND BRAKE) | 1 | $27.95 | |
| 25 | 3304-565 | BOLT FLANGE 8*20 | 1 | $1.50 | |
| 27 | 3306-763 | TIRE ASSY RR /KENDA | 1 | $144.95 |
