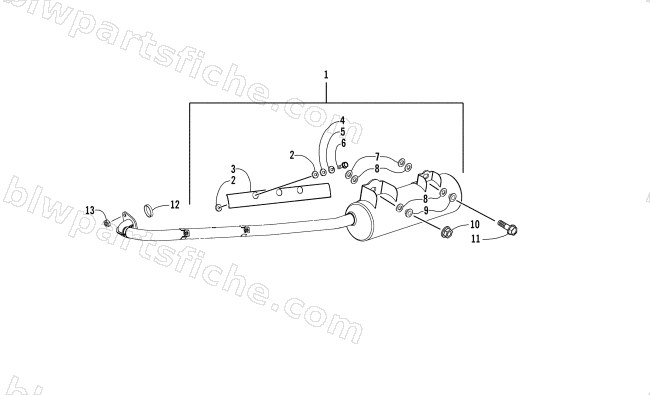

2016 Arctic Cat 300 2X4 UTILITY — EXHAUST ASSEMBLY
2016 300 2X4 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-888 | MUFFLER ASSY EXH | 1 | $767.95 | |
| 2 | 3303-727 | PACKING PROTECTOR | 1 | $3.02 | |
| 3 | 3303-730 | PROTECTOR EXH PIPE | 1 | $20.63 | |
| 4 | 3304-134 | WASHER PLAIN 6MM | 1 | $0.81 | |
| 5 | 3304-140 | WASHER SPRING 6MM | 1 | $0.81 | |
| 6 | 3303-381 | BOLT FLANGE SH 6*12 | 1 | $0.81 | |
| 7 | 3303-726 | RUBBER MUFFLER STAY | 1 | $1.92 | |
| 8 | 3303-728 | PACKING MUFFLER STAY | 1 | $1.92 | |
| 9 | 3303-731 | COLLAR MUFFLER STAY | 1 | $3.16 | |
| 10 | 3303-332 | NUT FLANGE 8MM | 1 | $0.81 | |
| 12 | 3303-725 | GASKET EXHAUST PIPE | 1 | $4.13 | |
| 13 | 3304-125 | NUT HEX 8MM | 1 | $0.81 |
