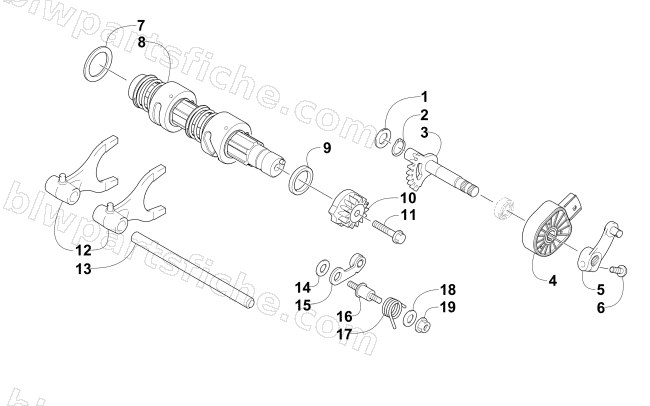

GEAR SHIFTING ASSEMBLY
2016 1000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0828-036 | WASHER, STEEL, 12 x 20 x .9 | 1 | $1.37 | |
| 2 | 0831-010 | RING, EXTERNAL RETAINING - DSH-12 | 1 | $1.50 | |
| 3 | 0818-095 | SHAFT,SUBGEAR SHIFT-ASM | 1 | $34.95 | |
| 4 | 0409-125 | R/B 0409-201 | 1 | $99.95 | |
| 5 | 0818-164 | ARM,GEAR SELECT-ASSY | 1 | $64.95 | |
| 6 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 7 | 0828-040 | WASHER, STEEL, 25 x 34 x .72 | 1 | $1.78 | |
| 8 | 0818-133 | SHAFT,GEAR SHIFT-P, PB | 1 | $203.95 | |
| 9 | 0828-131 | SPACER,SHIFT SHAFT | 1 | $4.95 | |
| 10 | 0818-145 | DETENT CAM,GEAR SHIFT-H2 | 1 | $12.35 | |
| 11 | 0826-006 | SCREW,CAP HFH M6 x 1 x 25 | 1 | $0.95 | |
| 12 | 0818-072 | R/B 0818-171 | 1 | $125.95 | |
| 13 | 0818-006 | SHAFT, SHIFT FORK | 1 | $30.95 | |
| 14 | 0828-038 | WASHER, STEEL, 6 x 14 x .9 | 1 | $1.64 | |
| 15 | 0818-002 | STOPPER, SWING ARM, CAM ASSY | 1 | $50.95 | |
| 16 | 0818-004 | SUPPORT, CAM STOPPER | 1 | $4.95 | |
| 17 | 0818-090 | SPRING,TORSION,DETENT ARM | 1 | $3.30 | |
| 18 | 0828-035 | WASHER, STEEL 6 x 16 x 2.5 | 1 | $2.61 | |
| 19 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 |
