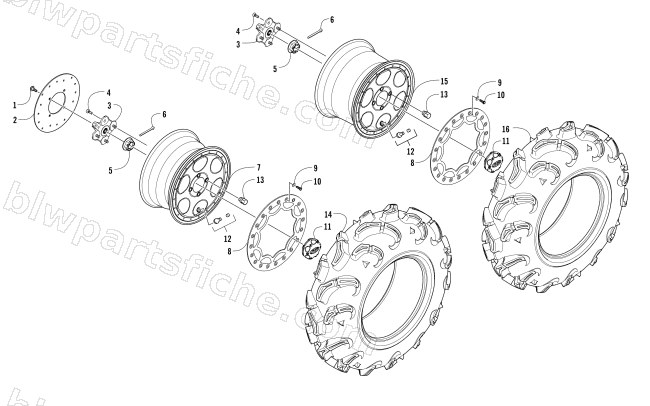

2016 Arctic Cat 1000 MUD PRO SE EPS — WHEEL AND TIRE ASSEMBLY
2016 1000 MUD PRO SE EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-418 | KIT,BRAKE DISC (1402-455) | 1 | $56.95 | |
| 3 | 1502-437 | HUB - ASSEMBLY | 1 | $180.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 6 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 7 | 2402-155 | WHEEL,FRT-BDLK (14X6.5) | 1 | $165.95 | |
| 9 | 1423-259 | WASHER, FLAT (5/16") | 1 | $2.88 | |
| 10 | 1423-258 | CAP SCREW-HEX-5/16"-18UNC-GRADE 8 | 1 | $0.68 | |
| 11 | 2402-194 | CAP, ITP-MATTE BLACK | 1 | $15.11 | |
| 12 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 13 | 1423-260 | NUT,LUG (BLK) | 1 | $3.57 | |
| 14 | 1402-855 | TIRE,MAXXIS ZILLA-28X9X14 | 1 | $219.95 | |
| 15 | 2402-156 | WHEEL,REAR-BDLK (14X8) | 1 | $165.95 | |
| 16 | 1402-901 | TIRE,MAXXIS ZILLA AT 28X11-14 | 1 | $266.95 |
