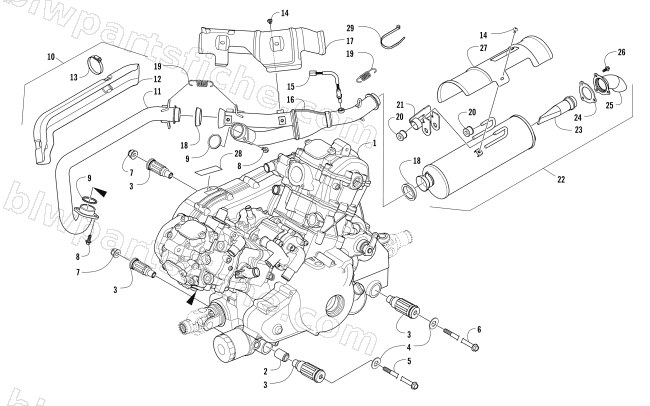

ENGINE AND EXHAUST
2016 1000 MUD PRO SE EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0801-128 | SPACER,ENGINE MOUNT,L31 | 1 | $13.73 | |
| 3 | 0801-091 | MOUNT,RUBBER-ENGINE | 1 | $37.95 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-734 | SCREW,CAP HFH M10-1.25X220 | 1 | $22.01 | |
| 6 | 0423-451 | SCREW,CAP-HFH M10X1.25X190 CL10.9 Z&Y | 1 | $5.95 | |
| 7 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 8 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 9 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 10 | 0512-433 | PIPE,EXHAUST-ASSEMBLY | 1 | $357.95 | |
| 11 | 0512-349 | PIPE,EXHAUST-BLACK(FRONT) | 1 | $196.95 | |
| 12 | 0412-400 | SHIELD,EXHAUST-INNER | 1 | $136.95 | |
| 13 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 14 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 15 | 0630-302 | R/B 0430-135 | 1 | $162.95 | |
| 16 | 0512-690 | PIPE,EXHAUST REAR-BLACK | 1 | $324.95 | |
| 17 | 0412-736 | SHIELD,EXHAUST-REAR | 1 | $74.95 | |
| 18 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 19 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 20 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 21 | 1506-732 | CHANNEL,MUFFLER SUPPORT-BLACK | 1 | $23.39 | |
| 22 | 0512-651 | MUFFLER ASSEMBLY-PTD HI TEMP BLK | 1 | $1,194.95 | |
| 23 | 0512-647 | SPARK ARRESTER | 1 | $37.95 | |
| 24 | 0412-675 | GASKET,SPARK ARRESTER | 1 | $20.63 | |
| 25 | 0512-733 | TAIL PIPE ASSY-PTD HI TEMP BLK | 1 | $27.95 | |
| 26 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 27 | 0412-373 | COVER,MUFFLER | 1 | $45.95 | |
| 28 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
