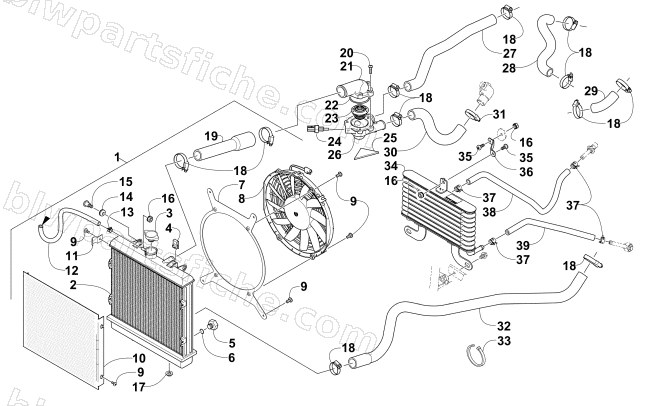

COOLING ASSEMBLY
2016 1000 MUD PRO SE EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-258 | RADIATOR, H2 - ASSEMBLY | 1 | $1,162.95 | |
| 2 | 0413-216 | RADIATOR - FABRICATED | 1 | $638.95 | |
| 3 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 4 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 5 | 0413-195 | PLUG,DRAIN-RADIATOR | 1 | $20.63 | |
| 6 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 7 | 0413-217 | BRACKET,FAN | 1 | $69.95 | |
| 8 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 9 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 10 | 0413-214 | SCREEN,RADIATOR | 1 | $86.95 | |
| 11 | 0423-351 | CLIP, HOSE | 1 | $4.13 | |
| 12 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 13 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 14 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 15 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 16 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 17 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 18 | 0423-496 | CLAMP,HOSE- WORM 19-38mmX12.7mm | 1 | $2.47 | |
| 19 | 0410-120 | HOSE,COOLANT-RAD UPPER | 1 | $47.95 | |
| 20 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 21 | 0808-092 | COVER, THERMOSTAT | 1 | $17.87 | |
| 22 | 0830-173 | ORING,ID44.12 X CS2.62 | 1 | $1.50 | |
| 23 | 0808-093 | THERMOSTAT, 71 DEG (FINAL) | 1 | $37.95 | |
| 24 | 0808-124 | SENSOR,WATER TEMP.-ASSY | 1 | $26.95 | |
| 25 | 0417-008 | PAD,FOAM .125 IN | 1 | $1.23 | |
| 26 | 0808-189 | HOUSING,THERMOSTAT-MACHINING | 1 | $54.95 | |
| 27 | 0410-195 | HOSE,COOLANT-#2 HOT | 1 | $20.63 | |
| 28 | 0410-116 | HOSE,COOLANT-#2 COLD | 1 | $32.95 | |
| 29 | 0410-115 | HOSE,COOLANT-#1 COLD | 1 | $24.77 | |
| 30 | 0410-117 | HOSE,COOLANT-#1 HOT | 1 | $37.95 | |
| 31 | 1623-093 | CLAMP,BAND-SAE #20 | 1 | $5.78 | |
| 32 | 0410-229 | HOSE,COOLANT-PUMP SUCTION | 1 | $47.95 | |
| 33 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 34 | 0413-211 | COOLER,OIL | 1 | $357.95 | |
| 35 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 36 | 0513-022 | BRKT,MTG UPPER-OIL COOLER-PTD | 1 | $10.97 | |
| 37 | 0423-632 | CLAMP,HOSE #5 MICRO-GEAR SIZE 05 | 1 | $4.82 | |
| 38 | 0410-149 | HOSE,OIL-IN | 1 | $85.95 | |
| 39 | 0410-219 | R/B 0410-321 | 1 | $34.95 |
