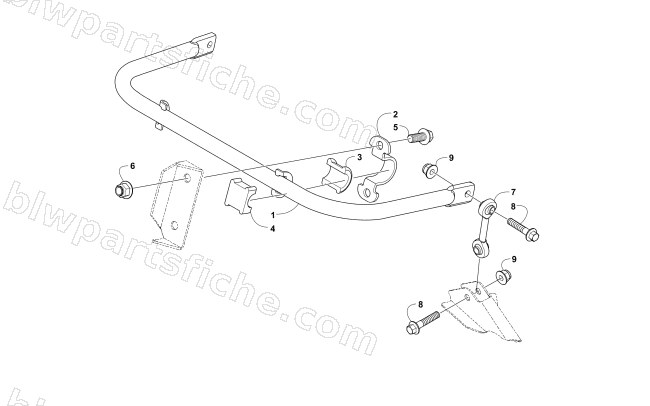

SWAY BAR ASSEMBLY
2015 XR 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1504-002 | SWAYBAR,REAR-PTD BLK | 1 | $159.95 | |
| 2 | 0404-135 | CLAMP,SWAYBAR BUSHING-BLACK | 1 | $19.25 | |
| 3 | 0404-094 | BUSHING,UPPER HALF-SWAYBAR | 1 | $5.92 | |
| 4 | 0404-095 | BUSHING,LOWER HALF-SWAYBAR | 1 | $5.92 | |
| 5 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 6 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 3603-295 | LINK,SWAYBAR-WIDE RACE | 1 | $34.95 | |
| 8 | 8413-842 | SCREW,CAP-HFH M8X1.25X40 CL10.9 W/204 | 1 | $2.47 | |
| 9 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 |
