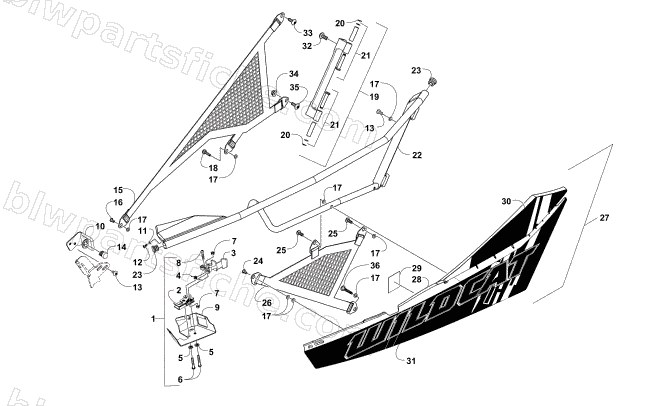

2015 Arctic Cat WILDCAT — DOOR ASSEMBLY
2015 WILDCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2436-266 | KIT,LATCH-DOOR-FR-RH-ASSY (WC 4X) | 1 | $185.95 | |
| 1 | 2436-267 | KIT,LATCH-DOOR-FR-LH-ASSY (WC 4X) | 1 | $185.95 | |
| 2 | 4406-908 | LATCH,ROTARY (50203) | 1 | $101.95 | |
| 2 | 4406-909 | LATCH,ROTARY (50202) | 1 | $82.95 | |
| 3 | 4406-999 | HANDLE,DOOR | 1 | $19.25 | |
| 4 | 1423-235 | SPRING,LATCH HANDLE | 1 | $4.54 | |
| 5 | 8051-213 | R/B 8051-212 | 1 | $0.35 | |
| 6 | 1423-232 | SCREW,BUTTON HEAD TORX BLK M6X1.0X40 | 1 | $3.02 | |
| 7 | 1423-153 | HEX NYLON NUT CL8 BLK ZINC M6(DIN 985) | 1 | $0.95 | |
| 8 | 1423-231 | SCREW,BUTTON HEAD TORX BLK M6X1.0X30 | 1 | $2.61 | |
| 9 | 4406-796 | BRKT,DOOR LATCH-RH | 1 | $41.95 | |
| 9 | 4406-797 | BRKT,DOOR LATCH-LH | 1 | $41.95 | |
| 10 | 4406-792 | STRIKER,DOOR-RH | 1 | $31.95 | |
| 10 | 4406-793 | STRIKER,DOOR-LH | 1 | $31.95 | |
| 13 | 1423-113 | SCREW,CAP BUTTON HEAD TORX BLK M6-1X10 | 1 | $3.85 | |
| 14 | 4406-419 | BUMPER,DOOR STOPPER | 1 | $5.78 | |
| 15 | 4406-304 | NET,FABRIC-UPPER | 1 | $43.95 | |
| 16 | 1423-157 | BOLT,SHOULDER-M6X1.0X25mm | 1 | $20.63 | |
| 17 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 18 | 1423-186 | BOLT,SHOULDER-M5X0.8X25MM | 1 | $10.97 | |
| 19 | 1436-476 | HINGE-DOOR-RH-ASSY | 1 | $90.95 | |
| 19 | 1436-454 | HINGE-DOOR-LH-ASSY | 1 | $90.95 | |
| 20 | 1423-118 | CIRCLIP BLK MAGNI 575 COATING (8MM) | 1 | $6.89 | |
| 21 | 0518-096 | KIT,DOOR HINGE PIN | 1 | $39.95 | |
| 22 | 5506-930 | FRAME,DOOR-RH-BLK | 1 | $504.95 | |
| 22 | 5506-931 | FRAME,DOOR-LH-BLK | 1 | $402.95 | |
| 23 | 4406-013 | CAP,PLASTIC | 1 | $3.57 | |
| 24 | 1423-196 | BOLT,SHOULDER-M6 X 1.0 X 12mm LG | 1 | $5.37 | |
| 25 | 1423-197 | BOLT,SHOULDER-M6 X 1.0 X 25mm LG | 1 | $3.71 | |
| 26 | 4406-305 | NET,FABRIC-LOWER | 1 | $43.95 | |
| 27 | 0518-180 | DOOR,PANEL W/ DECALS-BM-RH(WC) | 1 | $341.95 | |
| 27 | 0518-181 | DOOR,PANEL W/ DECALS-BM-LH(WC) | 1 | $341.95 | |
| 28 | 4406-788 | PANEL,DOOR SKIN-RH-BLK | 1 | $322.95 | |
| 28 | 0518-240 | DOOR,PANEL W/ WARNING DECAL-12 PSI-LH | 1 | $341.95 | |
| 30 | 4411-234 | DECAL,DOOR UPPER-RH (BM) | 1 | $6.47 | |
| 30 | 4411-235 | DECAL,DOOR UPPER-LH (BM) | 1 | $6.47 | |
| 31 | 4411-232 | DECAL,DOOR-LWR-RH (BM) | 1 | $66.95 | |
| 31 | 4411-233 | DECAL,DOOR-LWR-LH (BM) | 1 | $66.95 | |
| 32 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 33 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 34 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 35 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 | |
| 36 | 1423-205 | SCREW,SHOULDER-M6 X 1.0 X 35-BLK | 1 | $2.47 |
