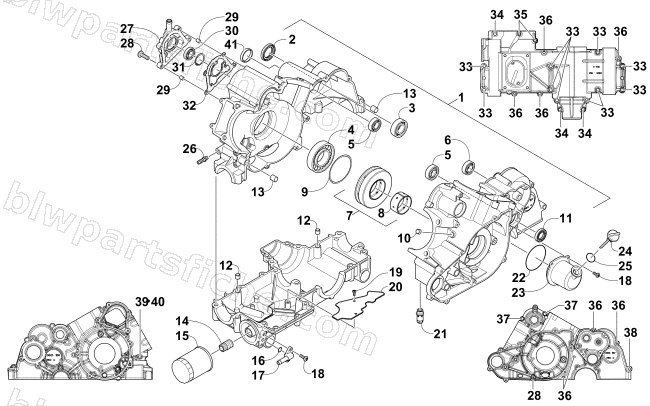

CRANKCASE ASSEMBLY
2015 WILDCAT X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0801-222 | CRANKCASE,ASM W/BEARINGS (H2 K) | 1 | $1,612.95 | |
| 2 | 0830-035 | SEAL, DRIVESHAFT | 1 | $16.49 | |
| 3 | 0832-048 | BEARING,DRIVESHAFT | 1 | $122.95 | |
| 4 | 0832-042 | BEARING,BALL-S/R 40X80X18 | 1 | $66.95 | |
| 5 | 0832-050 | BEARING,CONRAD-6304 | 1 | $20.63 | |
| 6 | 0832-049 | BEARING,CONRAD-6204 | 1 | $17.87 | |
| 7 | 0832-055 | BEARING,CRANK-SHELL ASSY | 1 | $192.95 | |
| 9 | 0830-221 | O-RING,OIL GALLEY-H2 CASE | 1 | $5.37 | |
| 10 | 0801-002 | PLUG, ENGINE CASE | 1 | $3.71 | |
| 11 | 0822-052 | SEAL, COUNTER SHAFT RH | 1 | $10.97 | |
| 12 | 0829-003 | DOWEL, SPLIT, 11 x 16 | 1 | $10.97 | |
| 13 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 14 | 0812-066 | UNION,OIL FILTER (KY) | 1 | $13.73 | |
| 15 | 0812-034 | FILTER,OIL-(0812-029) | 1 | $16.49 | |
| 16 | 0830-172 | O-RING,OIL FITTING-10.72 X 2.62 | 1 | $2.61 | |
| 17 | 0812-060 | FITTING,OIL-ANGLED | 1 | $17.87 | |
| 18 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 19 | 0623-914 | SCREW,SELF TAP THD LK-TSPNH 10-24X.375 | 1 | $0.26 | |
| 20 | 0801-218 | PLATE,BAFFLE-OIL (H2 LOWER CASE) | 1 | $12.35 | |
| 21 | 0812-052 | VALVE,OIL RELIEF ASSY,V-TWIN | 1 | $94.95 | |
| 22 | 0830-162 | O-RING,OIL FILLER COVER, VTWIN | 1 | $3.02 | |
| 23 | 0812-081 | COVER,OIL FILLER, WO/TUBE | 1 | $69.95 | |
| 24 | 0801-073 | STICK,OIL LEVEL | 1 | $26.95 | |
| 25 | 0830-010 | O-RING, 17 ID X 3.2 W | 1 | $3.44 | |
| 26 | 0812-078 | HOSE BARB,MALE,3/8 X 1/8 NPT | 1 | $10.97 | |
| 27 | 0801-193 | COVER,BREATHER-ASSY | 1 | $60.95 | |
| 28 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 29 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 30 | 0832-084 | BEARING,6201, 12 X 32 X 10 | 1 | $15.11 | |
| 31 | 0831-086 | CIRCLIP,SHAFT BEARING 33 | 1 | $1.23 | |
| 32 | 0830-191 | GASKET,BREATHER COVER | 1 | $6.47 | |
| 33 | 8412-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE SIL | 1 | $2.54 | |
| 34 | 8412-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE SIL | 1 | $9.59 | |
| 35 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 36 | 8468-660 | SCREW,MACH-TSPNH M6X1.0X60 CL8.8 BLK | 1 | $5.09 | |
| 37 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 38 | 8412-875 | SCREW,CAP-HFH M8X1.25X75 CL8.8 RIE SIL | 1 | $17.87 | |
| 39 | 8412-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 RIE SIL | 1 | $1.92 | |
| 40 | 0830-008 | GASKET, COPPER 8X14X1 | 1 | $1.37 | |
| 41 | 0818-103 | PLUG, CYLINDER | 1 | $8.21 |
