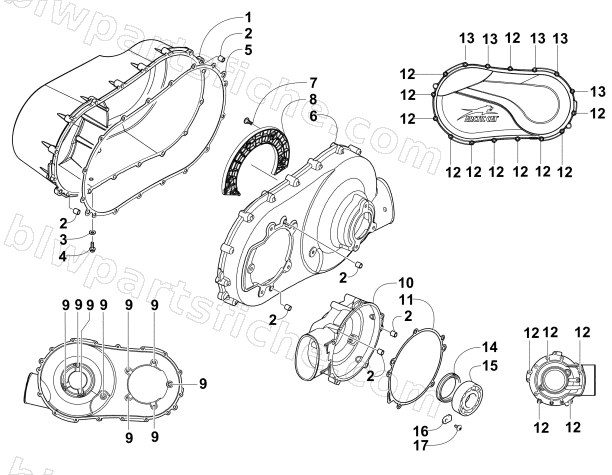

CLUTCH SIDE ENGINE COVERS
2015 WILDCAT X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-129 | COVER,H2 CVT-FLYWEIGHT | 1 | $268.95 | |
| 2 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 3 | 0830-013 | WASHER,CRUSH, 8 x 16 x 1 | 1 | $1.09 | |
| 4 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 5 | 0830-137 | GASKET,CVT COVER,VTWIN | 1 | $30.95 | |
| 6 | 0806-168 | COVER,INNER CLUTCH-MACH | 1 | $178.95 | |
| 7 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 8 | 0823-422 | PLATE,WINDAGE | 1 | $26.95 | |
| 9 | 8468-617 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353 | 1 | $0.54 | |
| 10 | 0806-159 | COVER,CLUTCH,FW,OIL RELIEF | 1 | $177.95 | |
| 11 | 0830-218 | GASKET,CENTRIF CLUTCH COVER,VTWIN | 1 | $13.73 | |
| 12 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 13 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 14 | 0832-096 | SEAL,OIL-35X70X8 | 1 | $26.95 | |
| 15 | 0832-043 | BEARING,BALL-S/R 35X80X21 | 1 | $66.95 | |
| 16 | 0822-010 | RETAINER, BEARING | 1 | $3.16 | |
| 17 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 |
