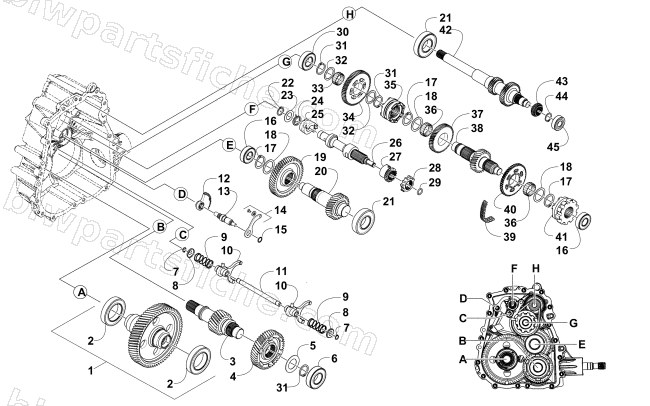

TRANSAXLE ASSEMBLY
2015 WILDCAT TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0817-047 | SUBASSEMBLY, OUTPUT | 1 | $537.95 | |
| 2 | 0817-029 | BEARING, BALL, 6010 C3 50X80X16 | 1 | $26.95 | |
| 3 | 0817-052 | GEAR, 22T | 1 | $150.95 | |
| 4 | 0817-059 | GEAR, 46T STAGE 3 | 1 | $110.95 | |
| 5 | 0817-010 | WASHER, 30.60 X 50.8 X 1.524 | 1 | $12.35 | |
| 6 | 0817-030 | BEARING, BALL, 6206 C3 30X62X16 | 1 | $24.77 | |
| 7 | 0817-016 | RING, RETAINING BASIC, EXTERNAL .428 | 1 | $1.37 | |
| 8 | 0817-008 | WASHER, CUP | 1 | $1.92 | |
| 9 | 0817-035 | SPRING, COMPRESSION, .92 O.D. X 2.000 | 1 | $1.95 | |
| 10 | 0817-062 | FORK, SHIFT | 1 | $33.95 | |
| 11 | 0817-050 | RAIL, SHIFT SHAFT | 1 | $16.49 | |
| 12 | 0817-043 | GEAR, SECTOR, 47T | 1 | $34.95 | |
| 13 | 0817-061 | SHAFT, SHIFT | 1 | $43.95 | |
| 14 | 0817-066 | SUBASSEMBLY, PAWL, DETENT, ROLLER | 1 | $33.95 | |
| 15 | 0817-074 | O-RING, -014 | 1 | $1.64 | |
| 16 | 0817-027 | BEARING, BALL, 6204 C3 20X47X14 | 1 | $10.97 | |
| 17 | 0817-018 | RING, EXTERNAL SNAP, 32.00 X 2.40 | 1 | $2.75 | |
| 18 | 0817-009 | WASHER, 32.3 X 42 X 1.5 | 1 | $4.68 | |
| 19 | 0817-060 | GEAR, 52T STAGE 2 | 1 | $121.95 | |
| 20 | 0817-046 | SHAFT, IDLER 29T | 1 | $154.95 | |
| 21 | 0817-031 | BEARING, BALL, 6207 C3 35X72X17 | 1 | $23.39 | |
| 22 | 0817-020 | RING, RETAINING BASIC, EXTERNAL, Ø21.0 | 1 | $1.78 | |
| 23 | 0817-063 | SPACER, 21.3 X 34.0 X 1.524 | 1 | $2.61 | |
| 24 | 0817-039 | SPRING, TORSION | 1 | $4.95 | |
| 25 | 0818-167 | CAM | 1 | $76.95 | |
| 26 | 0817-083 | DRUM,SHIFT-MACH | 1 | $235.95 | |
| 27 | 0817-042 | GEAR, SECTOR 23T | 1 | $45.95 | |
| 28 | 0817-044 | STAR, DETENT, | 1 | $30.95 | |
| 29 | 0817-073 | O-RING | 1 | $3.44 | |
| 30 | 0817-028 | BEARING, BALL, 6205 C3 25X52X15 | 1 | $12.35 | |
| 31 | 0817-017 | RING, RETAINING | 1 | $2.88 | |
| 32 | 0817-022 | WASHER, THRUST, 1.187 X 1.500 X .0600 | 1 | $9.59 | |
| 33 | 0817-032 | BEARING, NEEDLE, CAGE ASSY | 1 | $16.49 | |
| 34 | 0817-056 | GEAR, 66T | 1 | $109.95 | |
| 35 | 0817-058 | ENGAGEMENT DOG, 6-FACE | 1 | $81.95 | |
| 36 | 0817-026 | BEARING, NEEDLE, CAGE ASSY | 1 | $15.11 | |
| 37 | 0817-054 | GEAR, 53T | 1 | $89.95 | |
| 38 | 0817-049 | SHAFT, REVERSE 27T | 1 | $114.95 | |
| 39 | 0817-071 | CHAIN,SILENT-TYPE 101 .25PX.40WX58L | 1 | $106.95 | |
| 40 | 0817-055 | SPROCKET 48T, 6-POCKET | 1 | $65.95 | |
| 41 | 0817-053 | SHIFT DOG, PARK | 1 | $93.95 | |
| 42 | 0817-021 | SHAFT INPUT, HELICAL | 1 | $185.95 | |
| 43 | 0817-045 | SPROCKET, 20T | 1 | $37.95 | |
| 44 | 0817-013 | RING, RETAINING | 1 | $7.30 | |
| 45 | 0817-033 | BEARING, BALL, 6203 C3 17X40X12 | 1 | $10.97 |
