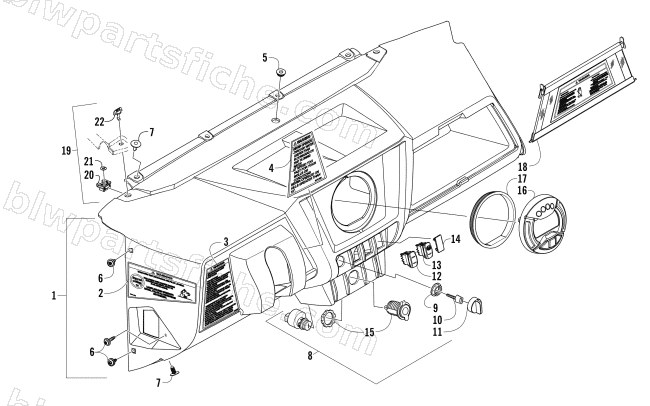

DASH ASSEMBLY
2015 WILDCAT TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-601 | DASH BOARD W/ WARNING DECALS | 1 | $105.95 | |
| 2 | 3411-918 | DECAL,WARNING-AGE | 1 | $6.47 | |
| 3 | 3411-893 | DECAL,WARNING-DASH LH | 1 | $6.47 | |
| 4 | 3411-892 | DECAL,WARNING-DASH RH (1 PASS) | 1 | $4.95 | |
| 5 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 6 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 7 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 8 | 0430-106 | R/B 0609-936 | 1 | $24.95 | |
| 9 | 0430-112 | NUT,SWITCH (CY) | 1 | $1.50 | |
| 10 | 0430-109 | R/B 0430-106 | 1 | $21.95 | |
| 10 | 0430-110 | R/B 0430-106 | 1 | $21.95 | |
| 11 | 0430-111 | COVER,KEY (CY) | 1 | $13.95 | |
| 12 | 0409-160 | SWITCH,LIGHTS (WC50) | 1 | $50.95 | |
| 13 | 0409-061 | SWITCH, 2/4/LOCK | 1 | $33.95 | |
| 14 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 15 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 17 | 0409-161 | RING,MOUNT-GAUGE | 1 | $13.73 | |
| 18 | 5506-413 | NET,GLOVE BOX-FRENCH | 1 | $26.95 | |
| 19 | 1423-218 | FASTENER,QUARTER TURN - ASSEMBLY | 1 | $4.54 | |
| 20 | 1423-208 | RECEIVER,QUARTER TURN FASTENER | 1 | $1.95 | |
| 21 | 1423-209 | RETAINER,QUARTER TURN FASTENER | 1 | $0.95 | |
| 22 | 1423-207 | KNOB,QUARTER TURN FASTENER | 1 | $2.75 |
