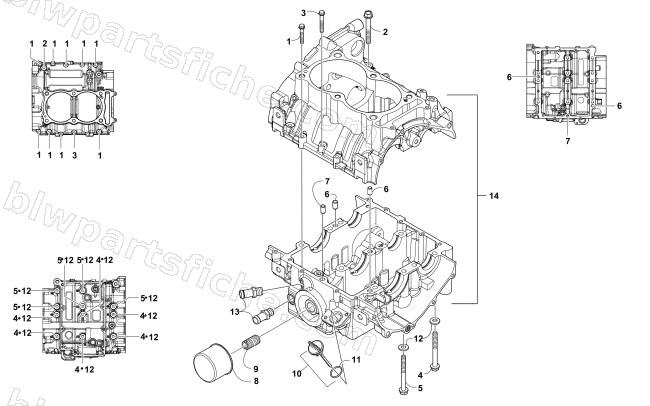

CRANKCASE ASSEMBLY
2015 WILDCAT TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-386 | BOLT FLANGE SH 6*35 | 1 | $2.06 | |
| 2 | 3304-649 | BOLT FLANGE 8*60 | 1 | $2.61 | |
| 3 | 3307-053 | BOLT FLANGE SH 6*40 | 1 | $2.75 | |
| 4 | 3306-927 | BOLT FLANGE 8*90 | 1 | $5.51 | |
| 5 | 3306-926 | BOLT FLANGE 8*75 | 1 | $5.51 | |
| 6 | 3306-924 | LOCK PIN OIL 8*16 | 1 | $5.78 | |
| 7 | 3301-716 | DOWEL PIN | 1 | $3.16 | |
| 8 | 0812-034 | FILTER,OIL-(0812-029) | 1 | $16.49 | |
| 9 | 0812-066 | UNION,OIL FILTER (KY) | 1 | $13.73 | |
| 10 | 0806-029 | STICK, OIL LEVEL | 1 | $5.37 | |
| 11 | 3304-102 | O-RING 18*3 | 1 | $1.78 | |
| 12 | 3306-923 | WASHER SEALING 8M/M | 1 | $3.02 | |
| 13 | 0413-359 | FITTING,1/2" HOSE-3 BARB-M14X1.25 | 1 | $6.89 | |
| 14 | 3306-969 | CRANKCASE ASSEMBLY | 1 | $4,064.95 |
