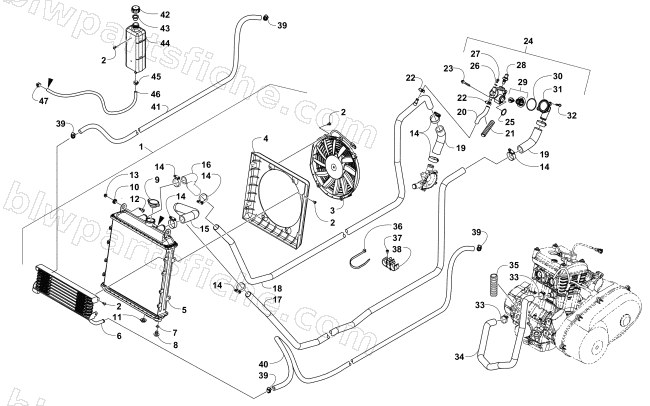

COOLING ASSEMBLY
2015 WILDCAT TRAIL XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0513-056 | RADIATOR W/OIL COOLER - ASSY | 1 | $1,364.95 | |
| 2 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 3 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 4 | 0413-327 | SHROUD,FAN | 1 | $152.95 | |
| 5 | 0513-057 | ELEMENT,RADIATOR | 1 | $460.95 | |
| 6 | 0413-322 | COOLER,OIL (145) | 1 | $223.95 | |
| 7 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 8 | 0413-195 | PLUG,DRAIN-RADIATOR | 1 | $20.63 | |
| 9 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 10 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 11 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 12 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 0423-496 | CLAMP,HOSE- WORM 19-38mmX12.7mm | 1 | $2.47 | |
| 15 | 0410-264 | HOSE,COOLANT-COOLANT PIPE/RADIATOR | 1 | $24.77 | |
| 16 | 0410-265 | HOSE,COOLANT-RADIATOR/COOLANT PIPE | 1 | $19.25 | |
| 17 | 0413-309 | PIPE,COOLANT-THERMOSTAT/RADIATOR | 1 | $136.95 | |
| 18 | 0513-055 | PIPE,COOLANT-RAD/WATER PUMP-WELDT | 1 | $86.95 | |
| 19 | 0410-263 | HOSE,COOLANT | 1 | $13.73 | |
| 20 | 0410-262 | HOSE,COOLANT-BYPASS | 1 | $4.40 | |
| 21 | 0610-790 | LOOM,COOLANT HOSE-5 FT | 1 | $132.95 | |
| 22 | 0423-632 | CLAMP,HOSE #5 MICRO-GEAR SIZE 05 | 1 | $4.82 | |
| 23 | 8408-640 | SCREW,CAP-HFH M6X1.0X40 CL8.8 Z&Y | 1 | $1.50 | |
| 24 | 0808-224 | THERMOSTAT-ASSY | 1 | $127.95 | |
| 25 | 3304-104 | O-RING 24.4*3.1 | 1 | $1.95 | |
| 26 | 3304-049 | WASHER A 6MM | 1 | $0.81 | |
| 27 | 3304-186 | BOLT FLANGE SH 6*10 | 1 | $0.95 | |
| 28 | 0824-051 | SENSOR,COOLANT TEMP (SYNERJECT) | 1 | $19.25 | |
| 29 | 0813-050 | THERMOSTAT ASSY | 1 | $99.95 | |
| 30 | 0830-205 | O-RING 18.3X2 | 1 | $3.95 | |
| 31 | 0808-202 | COVER THERMOSTAT | 1 | $16.49 | |
| 32 | 3303-383 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 33 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 34 | 0410-271 | HOSE,COOLANT-WATER PUMP/CYLINDER | 1 | $43.95 | |
| 35 | 0610-734 | LOOM,COOLANT HOSE-COVER | 1 | $20.63 | |
| 36 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 37 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 | |
| 38 | 0413-346 | CLIP,COOLANT LINE | 1 | $3.44 | |
| 39 | 2623-062 | CLAMP,HOSE-12/20 (NORMA) | 1 | $3.02 | |
| 40 | 0410-273 | R/B 0410-320 | 1 | $107.95 | |
| 42 | 0413-328 | CAP,TANK-COOLANT | 1 | $3.44 | |
| 43 | 0413-329 | SLEEVE,TANK-COOLANT | 1 | $3.16 | |
| 44 | 0413-320 | TANK,COOLANT-RESERVOIR | 1 | $26.95 | |
| 45 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 46 | 0410-274 | HOSE,OVERFLOW | 1 | $6.95 | |
| 47 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 |
