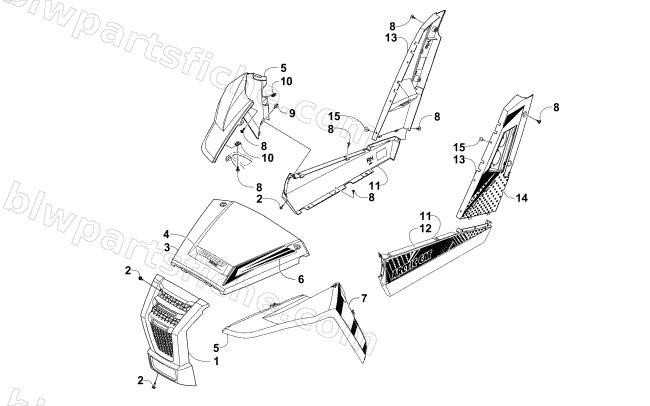

2015 Arctic Cat WILDCAT TRAIL LIMITED — FRONT AND SIDE PANEL ASSEMBLIES
2015 WILDCAT TRAIL LIMITED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-263 | FASCIA,FRONT | 1 | $33.95 | |
| 2 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 3 | 5506-519 | HOOD-SILVER DOLLAR WHITE | 1 | $307.95 | |
| 4 | 4411-171 | DECAL,CREST (VR) | 1 | $62.95 | |
| 4 | 4411-187 | DECAL,CREST (OM) | 1 | $10.97 | |
| 5 | 5506-510 | FENDER,FRONT-RH VIBRANT RED | 1 | $249.95 | |
| 5 | 5506-511 | FENDER,FRONT-LH VIBRANT RED | 1 | $249.95 | |
| 5 | 5506-504 | FENDER,FRONT-RH SILVER DOLLAR WHITE | 1 | $249.95 | |
| 5 | 5506-505 | FENDER,FRONT-LH SILVER DOLLAR WHITE | 1 | $249.95 | |
| 6 | 4411-202 | DECAL,HOOD-RH (VR ON WHT) | 1 | $33.95 | |
| 6 | 4411-203 | DECAL,HOOD-LH (VR ON WHT) | 1 | $33.95 | |
| 6 | 4411-206 | DECAL,HOOD SIDE-RH (OM ON WHT) | 1 | $33.95 | |
| 6 | 4411-207 | DECAL,HOOD SIDE-LH (OM ON WHT) | 1 | $33.95 | |
| 7 | 4411-190 | DECAL,FRONT FENDER-RH (VR) | 1 | $45.95 | |
| 7 | 4411-191 | DECAL,FRONT FENDER-LH (VR) | 1 | $17.87 | |
| 7 | 4411-208 | DECAL,FRONT FENDER SIDE-RH (OM) | 1 | $42.95 | |
| 7 | 4411-209 | DECAL,FRONT FENDER SIDE-LH (OM) | 1 | $42.95 | |
| 8 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 9 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 10 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 11 | 4406-280 | PANEL,LOWER SIDE-RH BLACK | 1 | $42.95 | |
| 11 | 4406-281 | PANEL,LOWER SIDE-LH BLACK | 1 | $42.95 | |
| 12 | 4411-192 | DECAL,MID SIDE LOWER-RH (VR) | 1 | $49.95 | |
| 12 | 4411-193 | DECAL,MID SIDE LOWER-LH (VR) | 1 | $33.95 | |
| 12 | 4411-210 | DECAL,SIDE LWR-RH (OM) | 1 | $33.95 | |
| 12 | 4411-211 | DECAL,SIDE LWR-LH (OM) | 1 | $33.95 | |
| 13 | 5506-582 | PANEL,REAR SIDE-RH-VIBRANT RED | 1 | $244.95 | |
| 13 | 5506-583 | PANEL,REAR SIDE-LH-VIBRANT RED | 1 | $244.95 | |
| 13 | 5506-576 | PANEL,REAR SIDE-RH-SILVER DOLLAR WHITE | 1 | $212.95 | |
| 13 | 5506-577 | PANEL,REAR SIDE-LH-SILVER DOLLAR WHITE | 1 | $212.95 | |
| 14 | 4411-204 | DECAL,PILLAR 'LIMITED'- RH (VR) | 1 | $50.95 | |
| 14 | 4411-205 | DECAL,PILLAR 'LIMITED'- LH (VR) | 1 | $50.95 | |
| 14 | 4411-212 | DECAL,PILLAR 'LIMITED'- RH (OM) | 1 | $50.95 | |
| 14 | 4411-213 | DECAL,PILLAR 'LIMITED'- LH (OM) | 1 | $50.95 | |
| 15 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 |
