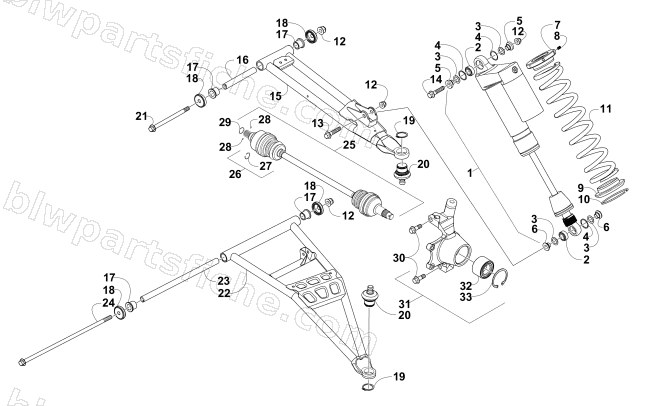

2015 Arctic Cat WILDCAT SPORT XT — FRONT SUSPENSION ASSEMBLY
2015 WILDCAT SPORT XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0403-476 | SHOCK,FRONT (JRI) | 1 | $668.95 | |
| 2 | 0403-506 | BEARING,SPHERICAL-0.5" BORE | 1 | $92.95 | |
| 3 | 0403-504 | O-RING,SHOCK SPACER | 1 | $3.44 | |
| 4 | 0403-507 | CLIP,SPIRAL RETAINING-0.5" BORE | 1 | $3.44 | |
| 5 | 0403-508 | SPACER,FR-UPR SHOCK | 1 | $10.97 | |
| 6 | 0403-505 | SPACER,FRONT SHOCK MOUNT | 1 | $48.95 | |
| 7 | 0403-500 | NUT,SPRING RETAINER-2.5" | 1 | $44.95 | |
| 8 | 0403-501 | SCREW,SET-SPRING RETAINER | 1 | $10.97 | |
| 9 | 0403-502 | RETAINER,LOWER SPRING-2.5" | 1 | $40.95 | |
| 10 | 0403-503 | CLIP,RETAINING-2.5" | 1 | $6.83 | |
| 11 | 0503-929 | SPRING, FRONT MAIN-PTD WHT | 1 | $49.95 | |
| 13 | 8409-045 | SCREW,CAP-HFH M10X1.25X45 CL10.9 Z&Y | 1 | $1.50 | |
| 14 | 8409-055 | SCREW,CAP-HFH M10X1.25X55 CL10.9 Z&Y | 1 | $4.13 | |
| 15 | 0503-956 | A-ARM,FR-UPR-RH-NEP BLU ASSY | 1 | $283.95 | |
| 15 | 0503-957 | A-ARM,FR-UPR-LH-NEP BLU ASSY | 1 | $283.95 | |
| 15 | 0503-954 | A-ARM,FR-UPR-RH-VRM ASSY | 1 | $283.95 | |
| 15 | 0503-955 | A-ARM,FR-UPR-LH-VRM ASSY | 1 | $283.95 | |
| 16 | 0404-503 | SLEEVE,FRONT SUSPENSION-UPPER | 1 | $54.95 | |
| 17 | 2402-077 | BEARING, FLANGE-18 ID X 26 OD X 21 | 1 | $16.49 | |
| 18 | 1423-287 | SEAL,SUSPENSION | 1 | $12.35 | |
| 19 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 20 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 21 | 1423-266 | SCREW,CAP-HFH M10-1.25X155 | 1 | $6.47 | |
| 22 | 0503-944 | A-ARM,FR-LWR-RH-NEP BLU ASSY | 1 | $314.95 | |
| 22 | 0503-945 | A-ARM,FR-LWR-LH-NEP BLU ASSY | 1 | $314.95 | |
| 22 | 0503-942 | A-ARM FR-LWR-RH-VRM ASSY | 1 | $314.95 | |
| 22 | 0503-943 | A-ARM,FR-LWR-LH-VRM ASSY | 1 | $314.95 | |
| 23 | 0404-502 | SLEEVE,FRONT SUSPENSION-LOWER | 1 | $94.95 | |
| 24 | 1423-249 | SCREW,CAP-HFH M10X1.25X330 CL 10.9 | 1 | $27.95 | |
| 26 | 2436-112 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 27 | 1441-988 | CIRCLIP,HALFSHAFT-INTERNAL | 1 | $1.78 | |
| 28 | 1402-885 | PIN,TRANSFER,SHORT-COUPLER AXLE | 1 | $1.92 | |
| 29 | 1402-889 | CIRCLIP,22MM | 1 | $1.78 | |
| 30 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 31 | 0503-912 | KNUCKLE, FR-RH-ASSY | 1 | $318.95 | |
| 31 | 0503-913 | KNUCKLE, FR-LH-ASSY | 1 | $318.95 | |
| 32 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 33 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
