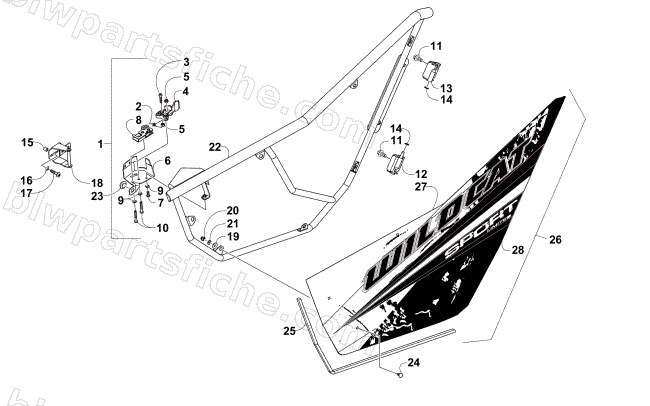

2015 Arctic Cat WILDCAT SPORT LIMITED — DOOR ASSEMBLY
2015 WILDCAT SPORT LIMITED
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2436-262 | KIT,LATCH-DOOR-RH-ASSY (WC SPRT/TRL LTD) | 1 | $197.95 | |
| 1 | 2436-263 | KIT,LATCH-DOOR-LH-ASSY (WC SPRT/TRL LTD | 1 | $197.95 | |
| 2 | 1423-235 | SPRING,LATCH HANDLE | 1 | $4.54 | |
| 3 | 1423-231 | SCREW,BUTTON HEAD TORX BLK M6X1.0X30 | 1 | $2.61 | |
| 4 | 4406-454 | R/B 4406-999 | 1 | $16.95 | |
| 4 | 4406-999 | HANDLE,DOOR | 1 | $19.25 | |
| 5 | 1423-153 | HEX NYLON NUT CL8 BLK ZINC M6(DIN 985) | 1 | $0.95 | |
| 6 | 4406-730 | BRKT,DOOR LATCH-RH | 1 | $41.95 | |
| 6 | 4406-731 | BRKT,DOOR LATCH-LH | 1 | $41.95 | |
| 7 | 1423-114 | R/B 8468-616 | 1 | $0.85 | |
| 7 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 8 | 4406-908 | LATCH,ROTARY (50203) | 1 | $101.95 | |
| 8 | 4406-909 | LATCH,ROTARY (50202) | 1 | $82.95 | |
| 9 | 1423-120 | WASHER,LOCK-BLK M6 6.4MM X OD 12MM X 1.6 | 1 | $1.95 | |
| 9 | 8051-213 | R/B 8051-212 | 1 | $0.35 | |
| 10 | 1423-232 | SCREW,BUTTON HEAD TORX BLK M6X1.0X40 | 1 | $3.02 | |
| 11 | 8408-818 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y W/204 | 1 | $1.78 | |
| 12 | 4406-424 | HINGE,LOWER-RH | 1 | $39.95 | |
| 12 | 4406-425 | HINGE,LOWER-LH | 1 | $39.95 | |
| 13 | 4406-426 | HINGE,UPPER-RH | 1 | $39.95 | |
| 13 | 4406-427 | HINGE,UPPER-LH | 1 | $39.95 | |
| 14 | 1423-224 | BUSHING,DOOR HINGE | 1 | $5.23 | |
| 15 | 4406-777 | DOOR STRIKER | 1 | $17.87 | |
| 16 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 17 | 8468-626 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 W/2353 | 1 | $1.09 | |
| 18 | 4406-728 | STRIKER,DOOR-RH | 1 | $24.77 | |
| 18 | 4406-729 | STRIKER,DOOR-LH | 1 | $24.77 | |
| 19 | 1423-264 | WASHER,FLAT-18X6.4X1.6-BLK | 1 | $1.09 | |
| 20 | 1423-263 | NUT,HEX ACORN M6-1.0 BLK | 1 | $2.06 | |
| 22 | 5506-838 | FRAME,DOOR-RH-BLK | 1 | $301.95 | |
| 22 | 5506-839 | FRAME,DOOR-LH-BLK | 1 | $366.95 | |
| 23 | 4406-776 | PLUG,BUMPER | 1 | $19.25 | |
| 24 | 1423-233 | BOLT,CARRIAGE CL8.8 BLK M6X1.0X16 | 1 | $1.78 | |
| 25 | 4406-724 | TRIM,DOOR SEAL-920mm | 1 | $107.95 | |
| 26 | 0518-236 | DOOR,PANEL W/ DECALS-BM-RH(WC SPORT LTD) | 1 | $341.95 | |
| 26 | 0518-237 | DOOR,PANEL W/ DECALS-BM-LH(WC SPORT LTD) | 1 | $341.95 | |
| 26 | 0518-238 | DOOR,PANEL W/ DECALS-WM-RH(WC SPORT LTD) | 1 | $341.95 | |
| 26 | 0518-239 | DOOR,PANEL W/ DECALS-WM-LH(WC SPORT LTD) | 1 | $341.95 | |
| 27 | 4406-726 | PANEL,DOOR SKIN-RH-BLK | 1 | $322.95 | |
| 28 | 4411-470 | DECAL,DOOR 'SPT'-RH (MB) | 1 | $148.95 | |
| 28 | 4411-471 | DECAL,DOOR 'SPT'-LH (MB) | 1 | $148.95 | |
| 28 | 4411-458 | DECAL,DOOR 'SPT'-RH (WM) | 1 | $61.95 | |
| 28 | 4411-459 | DECAL,DOOR 'SPT'-LH (WM) | 1 | $61.95 |
