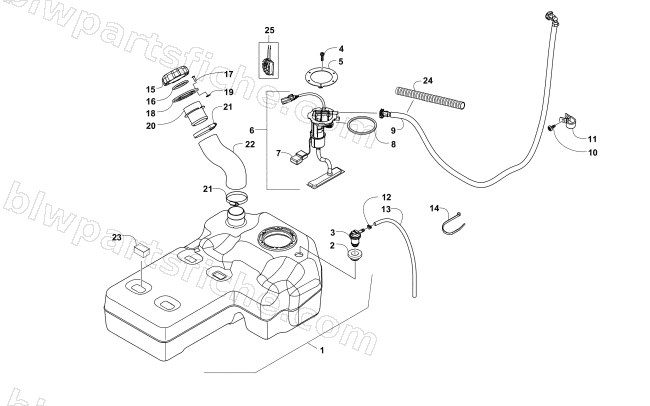

2015 Arctic Cat WILDCAT SPORT LIME — GAS TANK ASSEMBLY
2015 WILDCAT SPORT LIME
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-374 | FUEL TANK | 1 | $232.95 | |
| 2 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 3 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 4 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 5 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 6 | 0570-402 | PUMP,FUEL-ASSEMBLY | 1 | $460.95 | |
| 7 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 8 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 9 | 0570-384 | LINE,FUEL | 1 | $100.95 | |
| 10 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 11 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 12 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 13 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 15 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 16 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 17 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 19 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 20 | 0470-970 | NECK,FILL-REMOTE | 1 | $10.97 | |
| 21 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 22 | 0410-283 | HOSE,FILLER | 1 | $61.95 | |
| 23 | 1470-049 | FOAM, FUEL TANK | 1 | $1.09 | |
| 24 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 |
