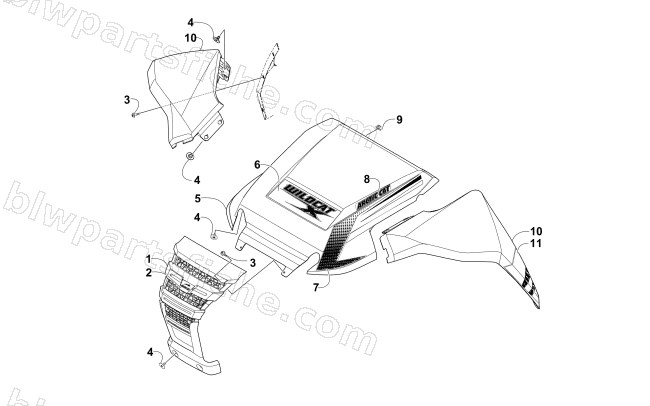

2015 Arctic Cat WILDCAT 4X — FRONT PANEL ASSEMBLY
2015 WILDCAT 4X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-685 | GRILLE,FRONT | 1 | $41.95 | |
| 2 | 2411-943 | DECAL,GRILL-FRONT | 1 | $15.11 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 5 | 5506-415 | HOOD,PTD-NEPTUNE BLUE | 1 | $337.95 | |
| 5 | 5506-417 | HOOD,SD WHITE-PTD | 1 | $476.95 | |
| 6 | 4411-221 | DECAL,CREST (VB) | 1 | $10.97 | |
| 6 | 4411-503 | DECAL,CREST-(WM) | 1 | $10.97 | |
| 7 | 4411-242 | DECAL,HOOD FORWARD-RH (VB) | 1 | $26.95 | |
| 7 | 4411-243 | DECAL,HOOD FORWARD-LH (VB) | 1 | $26.95 | |
| 7 | 4411-504 | DECAL,HOOD FORWARD-RH (WM) | 1 | $26.95 | |
| 7 | 4411-505 | DECAL,HOOD FORWARD-LH (WM) | 1 | $26.95 | |
| 8 | 4411-231 | DECAL,HOOD 'ARCTIC CAT' (VB) | 1 | $1.78 | |
| 8 | 4411-255 | DECAL,HOOD 'ARCTIC CAT' (WM) | 1 | $1.78 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 5506-418 | PANEL,FENDER-FRT-RH-NEPTUNE BLUE-PTD | 1 | $212.95 | |
| 10 | 5506-419 | PANEL,FENDER-FRT-LH-NEPTUNE BLUE-PTD | 1 | $212.95 | |
| 10 | 5506-142 | PANEL,FENDER-FRT-RH SLVR DLR WHT-PTD | 1 | $212.95 | |
| 10 | 5506-143 | PANEL,FENDER-FRT-LH SLVR DLR WHT-PTD | 1 | $212.95 | |
| 11 | 4411-248 | DECAL,FRONT FENDER-RH (VB) | 1 | $17.87 | |
| 11 | 4411-249 | DECAL,FRONT FENDER-LH (VB) | 1 | $17.87 | |
| 11 | 4411-260 | DECAL,FRONT FENDER-RH (WM) | 1 | $17.87 | |
| 11 | 4411-261 | DECAL,FRONT FENDER-LH (WM) | 1 | $17.87 |
