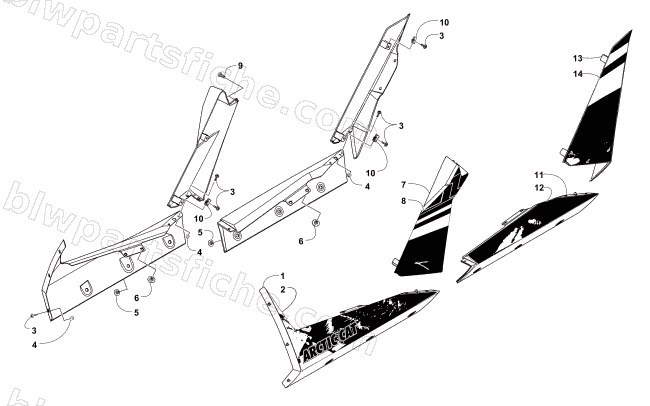

2015 Arctic Cat WILDCAT 4X LTD — SIDE PANEL ASSEMBLY
2015 WILDCAT 4X LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-988 | PANEL,SIDE-LWR-RH-BLK | 1 | $50.95 | |
| 1 | 2416-989 | PANEL,SIDE-LWR-LH-BLK | 1 | $50.95 | |
| 2 | 4411-590 | DECAL,SIDE LWR FR-RH-(VR) | 1 | $38.95 | |
| 2 | 4411-591 | DECAL,SIDE LWR FR-LH-(VR) | 1 | $38.95 | |
| 2 | 4411-602 | DECAL,SIDE LWR FR-RH-(MATTE BLK) | 1 | $38.95 | |
| 2 | 4411-603 | DECAL,SIDE LWR FR-LH-(MATTE BLK) | 1 | $38.95 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 6 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 7 | 4406-174 | PANEL,SIDE-UPR-MID-RH-BLK | 1 | $37.95 | |
| 7 | 4406-175 | PANEL,SIDE-UPR-MID-LH-BLK | 1 | $37.95 | |
| 8 | 4411-592 | DECAL,PILLAR MID-RH-(VR) | 1 | $105.95 | |
| 8 | 4411-593 | DECAL,PILLAR MID-LH-(VR) | 1 | $105.95 | |
| 8 | 4411-604 | DECAL,PILLAR FR-RH-(MATTE BLK) | 1 | $105.95 | |
| 8 | 4411-605 | DECAL,PILLAR FR-LH-(MATTE BLK) | 1 | $105.95 | |
| 9 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 10 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 11 | 4506-844 | PANEL,REAR SIDE-LWR-RH-BLK | 1 | $37.95 | |
| 11 | 4506-845 | PANEL,REAR SIDE-LWR-LH-BLK | 1 | $37.95 | |
| 12 | 4411-594 | DECAL,SIDE LWR RR-RH-(VR) | 1 | $42.95 | |
| 12 | 4411-595 | DECAL,SIDE LWR RR-LH-(VR) | 1 | $42.95 | |
| 12 | 4411-606 | DECAL,SIDE LWR RR-RH-(MATTE BLK) | 1 | $42.95 | |
| 12 | 4411-607 | DECAL,SIDE LWR RR-LH-(MATTE BLK) | 1 | $42.95 | |
| 13 | 2416-990 | PANEL,SIDE-UPR-REAR-RH-BLK | 1 | $37.95 | |
| 13 | 2416-991 | PANEL,SIDE-UPR-REAR-LH-BLK | 1 | $37.95 | |
| 14 | 4411-596 | DECAL,PILLAR RR-RH-(VR) | 1 | $68.95 | |
| 14 | 4411-597 | DECAL,PILLAR RR-LH-(VR) | 1 | $68.95 | |
| 14 | 4411-608 | DECAL,PILLAR RR-RH-(MATTE BLK) | 1 | $68.95 | |
| 14 | 4411-609 | DECAL,PILLAR RR-LH-(MATTE BLK) | 1 | $68.95 |
