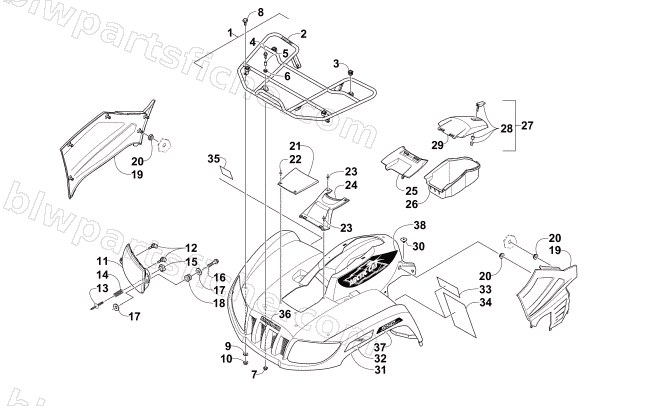

2015 Arctic Cat TRV 550 XT — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2015 TRV 550 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-106 | RACK,FRONT W/FENCE-ASSEMBLY | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 11 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 12 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 13 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 14 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 15 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 19 | 2406-324 | PANEL,SIDE-RH (500/650 TRV) | 1 | $66.95 | |
| 19 | 2406-421 | PANEL,SIDE-LH (650H1 TRV) | 1 | $90.95 | |
| 20 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 21 | 1406-358 | RADIATOR-ACCESS | 1 | $16.49 | |
| 22 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 23 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 24 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 25 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 26 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 27 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 28 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 29 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 | |
| 30 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 31 | 5506-318 | FENDER,FRONT NAVY BLUE-ASSY | 1 | $1,242.95 | |
| 31 | 4506-248 | FENDER,FRONT B.ORANGE-ASSY | 1 | $1,126.95 | |
| 32 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 32 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 33 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 34 | 2411-259 | DECAL,WARNING-TRV GENERAL 16 | 1 | $16.49 | |
| 35 | 4411-820 | DECAL,WARNING-HILL (TRV) | 1 | $10.97 | |
| 36 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 37 | 4411-375 | DECAL,550 EFI-NAVY BLUE | 1 | $4.95 | |
| 37 | 4411-374 | DECAL,550 EFI-SUNSET ORANGE | 1 | $6.47 | |
| 38 | 4411-376 | DECAL,SIDE-RH-NAVY BLUE | 1 | $42.95 | |
| 38 | 4411-377 | DECAL,SIDE-LH-NAVY BLUE | 1 | $42.95 | |
| 38 | 4411-370 | DECAL,SIDE-RH-SUNSET ORANGE | 1 | $58.95 | |
| 38 | 4411-371 | DECAL,SIDE-LH-SUNSET ORANGE | 1 | $58.95 |
