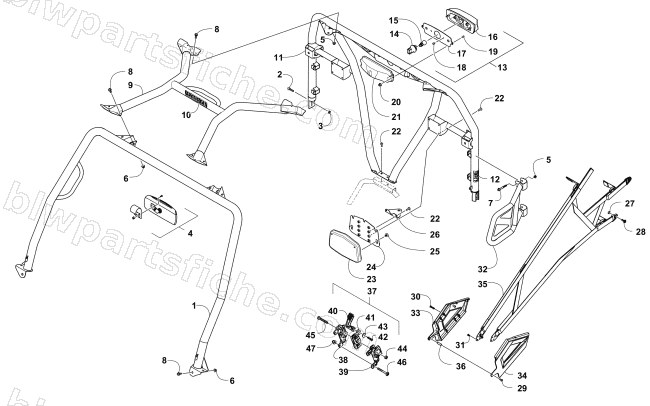

ROPS AND TAILLIGHT ASSEMBLY
2015 PROWLER 700 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-730 | HOOP,CANOPY-FRONT-PTD-BLK | 1 | $324.95 | |
| 2 | 1423-140 | SCREW,CAP-HSH M10 X 1.25 X 35 | 1 | $1.78 | |
| 3 | 1423-161 | NUT,HEX LOCK-NSL M10X1.25 GR 8 DIN 985 | 1 | $0.68 | |
| 4 | 1436-414 | MIRROR KIT, REARVIEW (RP) | 1 | $87.95 | |
| 5 | 8427-805 | NUT,HEX FLG-NYLOCK M8X1.25 CL8 RIE BLACK | 1 | $1.09 | |
| 6 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 8410-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE BLK | 1 | $1.50 | |
| 8 | 1423-151 | SCREW,CAP-HFH M10X1.25X25 - CL10.9 | 1 | $3.30 | |
| 9 | 4506-865 | TOP,CANOPY-PTD BLACK | 1 | $244.95 | |
| 10 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 11 | 5506-857 | HOOP, CANOPY RR W/ WARNING DECALS | 1 | $550.95 | |
| 12 | 3411-970 | DECAL,WARNING-ROPS | 1 | $3.30 | |
| 13 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 14 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 15 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 16 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 17 | 2406-069 | BRACKET,TAILLIGHT MOUNT-BLACK | 1 | $20.63 | |
| 18 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 19 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 20 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 21 | 2516-893 | COVER,TAILLIGHT | 1 | $13.73 | |
| 22 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 23 | 4406-989 | PAD,HEADREST | 1 | $26.95 | |
| 24 | 1506-722 | HEADREST MOUNT-PAINTED-BLACK | 1 | $89.95 | |
| 25 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 26 | 4506-296 | BRACKET,FLAG MOUNTING-PTD BLACK | 1 | $17.87 | |
| 27 | 1423-153 | HEX NYLON NUT CL8 BLK ZINC M6(DIN 985) | 1 | $0.95 | |
| 28 | 1423-196 | BOLT,SHOULDER-M6 X 1.0 X 12mm LG | 1 | $5.37 | |
| 29 | 1423-294 | SCREW,BUTTON HEAD TORX BLK M5-0.8X12 | 1 | $1.23 | |
| 30 | 1423-295 | SCREW,BUTTON HEAD TORX BLK 4-1.34X28 | 1 | $1.50 | |
| 31 | 1423-296 | SCREW, BUTTON HEAD TORX BLK 4-1.34X9.5 | 1 | $1.50 | |
| 32 | 7506-158 | GUARD,SHOULDER-RH-PTD BLACK | 1 | $141.95 | |
| 32 | 7506-159 | GUARD,SHOULDER-LH-PTD BLACK | 1 | $114.95 | |
| 33 | 4406-900 | HANDLE,NET-INSIDE-RH | 1 | $27.95 | |
| 33 | 4406-901 | HANDLE,NET-INSIDE-LH | 1 | $34.95 | |
| 34 | 4406-898 | HANDLE,NET-RH | 1 | $23.39 | |
| 34 | 4406-899 | HANDLE,NET-LH | 1 | $23.39 | |
| 35 | 4406-906 | NET,DOOR-RH | 1 | $136.95 | |
| 35 | 4406-907 | NET,DOOR-LH | 1 | $136.95 | |
| 36 | 4406-897 | PIN,STRIKER | 1 | $6.20 | |
| 37 | 7506-134 | LATCH-RH-ASSY | 1 | $122.95 | |
| 37 | 7506-135 | LATCH-LH-ASSY | 1 | $122.95 | |
| 38 | 4406-902 | BRKT,INNER LATCH MTG | 1 | $16.49 | |
| 39 | 4406-903 | BRKT,OUTER LATCH MTG | 1 | $16.49 | |
| 40 | 4406-904 | LEVER,RELEASE-RH | 1 | $13.73 | |
| 40 | 4406-905 | LEVER,RELEASE-LH | 1 | $13.73 | |
| 41 | 4406-908 | LATCH,ROTARY (50203) | 1 | $101.95 | |
| 41 | 4406-909 | LATCH,ROTARY (50202) | 1 | $82.95 | |
| 42 | 1423-319 | SCREW,BHTS HI-LO 4.0-1.34X22-BLK | 1 | $1.50 | |
| 43 | 1423-297 | WASHER, M4 BLACK FENDER | 1 | $0.95 | |
| 44 | 0423-649 | NUT,JAM-M6X1.0 LH | 1 | $0.68 | |
| 45 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 46 | 8477-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&BLK | 1 | $1.50 | |
| 47 | 8427-605 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 RIE BLK | 1 | $1.50 |
