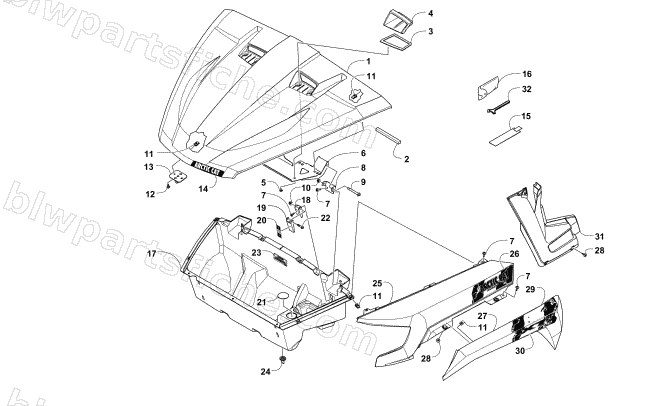

HOOD/FRONT STORAGE AND SIDE PANEL ASSEMBLY
2015 PROWLER 700 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-972 | PANEL,HOOD-TT CAMO | 1 | $1,115.95 | |
| 1 | 5506-973 | PANEL,HOOD - BLK(S) | 1 | $429.95 | |
| 2 | 4406-886 | SEAL,HOOD | 1 | $6.89 | |
| 4 | 4406-620 | HOOD SCOOP, RH | 1 | $16.49 | |
| 4 | 4406-621 | HOOD SCOOP, LH | 1 | $16.49 | |
| 5 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 6 | 7506-173 | HOOD,HINGE-PTD BLK | 1 | $156.95 | |
| 7 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 9 | 1423-289 | SCREW,SHOULDER M6 X 1.0(8D X 60L) | 1 | $8.21 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 12 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 13 | 5506-906 | HOOK, HOOD LATCH, WELDT | 1 | $19.25 | |
| 14 | 4411-570 | DECAL,HOOD-FRONT (ARCTIC CAT) | 1 | $17.87 | |
| 14 | 4411-571 | DECAL,HOOD-FRONT-BLK (ARCTIC CAT) | 1 | $3.30 | |
| 15 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 16 | 2516-863 | KIT,TOOL-HDX | 1 | $69.95 | |
| 17 | 4406-615 | BOX,FRONT STORAGE | 1 | $122.95 | |
| 18 | 4406-696 | R/B 8506-839 | 1 | $6.95 | |
| 19 | 4406-829 | R/B 8506-840 | 1 | $7.95 | |
| 20 | 4411-970 | DECAL,HOOD PROP | 1 | $4.95 | |
| 21 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 22 | 1423-288 | SCREW,SHOULDER M6 X 1.0(8D X 35L) | 1 | $17.87 | |
| 23 | 4411-553 | DECAL,CAUTION LOAD CAPACITY (25LB) | 1 | $3.30 | |
| 24 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 25 | 4406-808 | FENDER,FR RH INNER-TT CAMO | 1 | $607.95 | |
| 25 | 4406-809 | FENDER,FR LH INNER-TT CAMO | 1 | $607.95 | |
| 25 | 5506-936 | FENDER, FR RH INNER-BLK (S) | 1 | $163.95 | |
| 25 | 5506-937 | FENDER, FR LH INNER-BLK (S) | 1 | $163.95 | |
| 25 | 5506-952 | FENDER, FR RH INNER-RED (S) | 1 | $187.95 | |
| 25 | 5506-953 | FENDER, FR LH INNER-RED (S) | 1 | $187.95 | |
| 26 | 4411-702 | DECAL,HOOD SIDE RH-(700 XT/HDX XT CAMO) | 1 | $20.63 | |
| 26 | 4411-703 | DECAL,HOOD SIDE LH-(700 XT/HDX XT CAMO) | 1 | $20.63 | |
| 26 | 4411-770 | DECAL,HOOD SIDE RH-(PRLR XT BLK) | 1 | $13.73 | |
| 26 | 4411-771 | DECAL,HOOD SIDE LH-(PRLR XT BLK) | 1 | $13.73 | |
| 26 | 4411-696 | DECAL,HOOD SIDE RH-(PRLR XT RED) | 1 | $13.73 | |
| 26 | 4411-697 | DECAL,HOOD SIDE LH-(PRLR XT RED) | 1 | $13.73 | |
| 27 | 4406-810 | FENDER,FR RH OUTER-TT CAMO | 1 | $405.95 | |
| 27 | 4406-811 | FENDER,FR LH OUTER-TT CAMO | 1 | $405.95 | |
| 27 | 5506-938 | FENDER, FR RH OUTER-BLK (S) | 1 | $148.95 | |
| 27 | 5506-939 | FENDER, FR LH OUTER-BLK (S) | 1 | $148.95 | |
| 27 | 5506-954 | FENDER, FR RH OUTER-RED (S) | 1 | $148.95 | |
| 27 | 5506-955 | FENDER, FR LH OUTER-RED (S) | 1 | $148.95 | |
| 28 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 29 | 4411-704 | DECAL,FENDER FR RH-CAMO | 1 | $33.95 | |
| 29 | 4411-705 | DECAL,FENDER FR LH-CAMO | 1 | $33.95 | |
| 29 | 4411-862 | DECAL,FENDER FR UPR-RH (HDX XT) | 1 | $13.73 | |
| 29 | 4411-863 | DECAL,FENDER FR UPR-LH (HDX XT) | 1 | $13.73 | |
| 29 | 4411-848 | DECAL,FENDER FR UPR-RH(XT)RED | 1 | $13.73 | |
| 29 | 4411-849 | DECAL,FENDER FR UPR-LH(XT) RED | 1 | $13.73 | |
| 30 | 4406-610 | PANEL,SIDE-FR-RH | 1 | $42.95 | |
| 30 | 4406-611 | PANEL,SIDE-FR-LH | 1 | $42.95 | |
| 30 | 4411-692 | DECAL,FRONT FENDER LWR-RH(700 XT BLK) | 1 | $13.73 | |
| 30 | 4411-693 | DECAL,FRONT FENDER LWR-LH(700 XT BLK) | 1 | $13.73 | |
| 30 | 4411-698 | DECAL,FRONT FENDER LWR-RH(700 XT RED) | 1 | $13.73 | |
| 30 | 4411-699 | DECAL,FRONT FENDER LWR-LH(700 XT RED) | 1 | $13.73 | |
| 31 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
