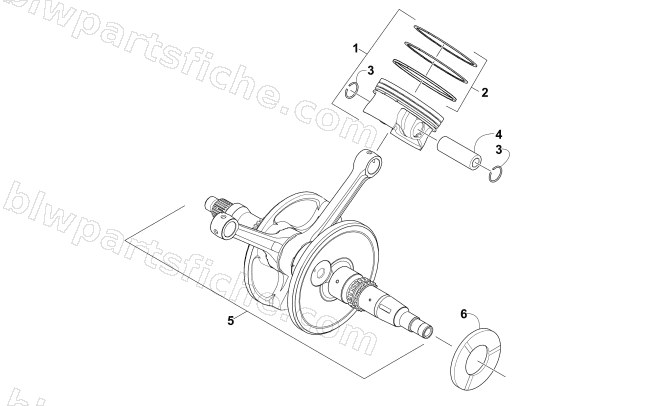

2015 Arctic Cat PROWLER 1000 XT — CRANKSHAFT AND PISTON ASSEMBLY
2015 PROWLER 1000 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0805-299 | R/B 0805-409 | 1 | $279.95 | |
| 2 | 0805-164 | RING SET,PISTON | 1 | $152.95 | |
| 3 | 0805-199 | CIRCLIP,PISTON PIN-A950 | 1 | $12.35 | |
| 4 | 0805-198 | PIN,PISTON-A950 | 1 | $37.95 | |
| 5 | 0805-327 | CRANKSHAFT,FINAL-ASSEMBLY V-TWIN-(N1) | 1 | $1,085.95 | |
| 6 | 0805-273 | WASHER,THRUST-CRANK | 1 | $33.95 |
