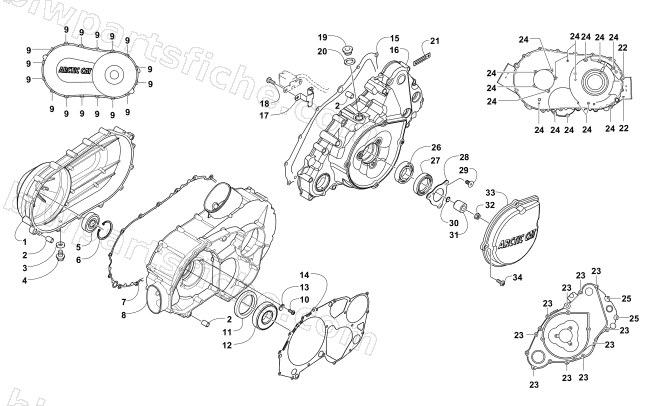

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY
2015 700 MUD PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-139 | COVER,CVT-PAINTED (H1) | 1 | $225.95 | |
| 2 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 3 | 0830-013 | WASHER,CRUSH, 8 x 16 x 1 | 1 | $1.09 | |
| 4 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 5 | 0832-060 | BEARING,BALL-S/R 17X47X14 | 1 | $26.95 | |
| 6 | 0831-078 | RING,RETAINING-DHO-47 | 1 | $2.61 | |
| 7 | 0830-220 | GASKET,CVT COVER (H1) | 1 | $35.95 | |
| 9 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 10 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 | |
| 11 | 0830-244 | SEAL,OIL (52X70X8) | 1 | $16.49 | |
| 12 | 0832-009 | BEARING,CONRAD-6208RUEF- 1 | 1 | $90.95 | |
| 13 | 0822-010 | RETAINER, BEARING | 1 | $3.16 | |
| 14 | 0830-116 | GASKET,COVER-CLUTCH | 1 | $50.95 | |
| 15 | 0830-128 | GASKET,MAGNETO COVER | 1 | $23.39 | |
| 16 | 0806-170 | COVER,MAGNETO (LONG BOSS K) | 1 | $126.95 | |
| 17 | 0802-071 | CLAMP,NO. 3 | 1 | $4.54 | |
| 18 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 19 | 0826-155 | PLUG,TDC INSPECTION | 1 | $10.97 | |
| 20 | 0830-015 | WASHER, CRUSH, 16 x 22 x 2 | 1 | $1.92 | |
| 21 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 23 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 25 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 26 | 1602-981 | BEARING,25MMX47MMX8MM-PEER | 1 | $17.87 | |
| 27 | 0830-158 | R/B 0830-226 | 1 | $4.95 | |
| 28 | 0805-008 | RETAINER, OIL SEAL | 1 | $16.49 | |
| 29 | 0826-031 | SCREW,MACH-TSFH M6 X1X12 W/ THD LOCK | 1 | $1.23 | |
| 30 | 0830-108 | O-RING,STARTER CUP | 1 | $1.50 | |
| 31 | 0820-061 | BUSHING | 1 | $17.87 | |
| 32 | 0827-008 | NUT, HEX FLANGE, M10 x 1.25 | 1 | $0.95 | |
| 33 | 0820-062 | COVER, MAGNETO - OUTER | 1 | $58.95 | |
| 34 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 |
