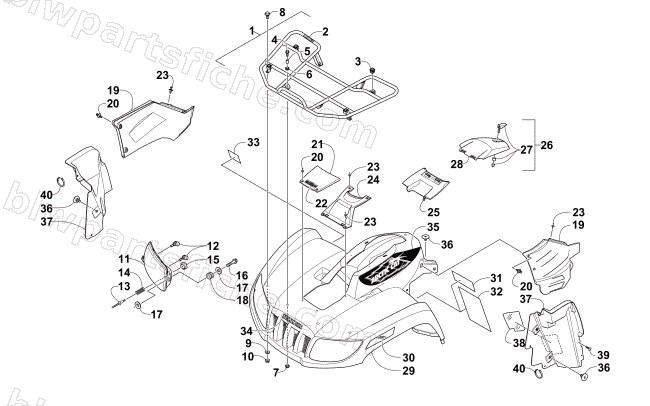

FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2015 700 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-106 | RACK,FRONT W/FENCE-ASSEMBLY | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 11 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 12 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 13 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 14 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 15 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 19 | 2406-404 | PANEL,SIDE-RH (BLACK) | 1 | $324.95 | |
| 19 | 2406-405 | PANEL,SIDE-LH (BLACK) | 1 | $324.95 | |
| 20 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 21 | 1406-358 | RADIATOR-ACCESS | 1 | $16.49 | |
| 22 | 2411-520 | DECAL,CAUTION COOLANT FILL-DIESEL | 1 | $13.73 | |
| 23 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 24 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 25 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 26 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 27 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 28 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 | |
| 29 | 0518-074 | FENDER,FRONT MARSH-ASSY | 1 | $539.95 | |
| 30 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 30 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 31 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 32 | 2411-259 | DECAL,WARNING-TRV GENERAL 16 | 1 | $16.49 | |
| 33 | 4411-938 | DECAL,STARTING INSTRUCTIONS (DIESEL) | 1 | $16.49 | |
| 34 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 35 | 4411-360 | DECAL,SIDE-RH-MARSH | 1 | $66.95 | |
| 35 | 4411-361 | DECAL,SIDE-LH-MARSH | 1 | $66.95 | |
| 36 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 37 | 2506-434 | PANEL,SPLASH-RH-ROUTED | 1 | $97.95 | |
| 37 | 2506-383 | PANEL,SPLASH-LH ASSEMBLY | 1 | $90.95 | |
| 38 | 0412-404 | SHIELD,HEAT | 1 | $5.09 | |
| 39 | 0423-719 | SCREW,SELF TAP-PHPNH12-14X3/4 AB BLK | 1 | $0.40 | |
| 40 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
