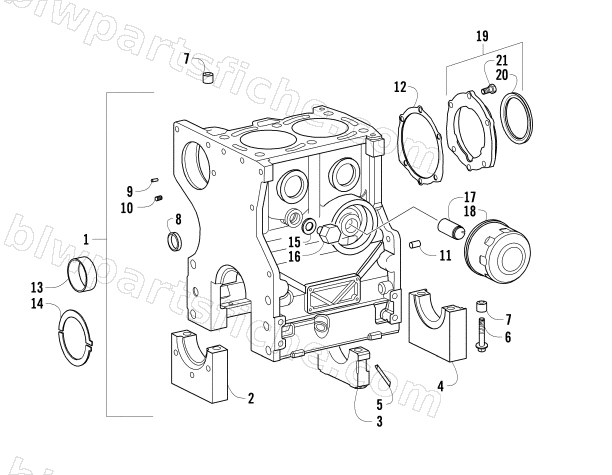

2015 Arctic Cat 700 DIESEL — CRANKCASE, CRANKSHAFT SUPPORT, AND OIL FILTER ASSEMBLIES
2015 700 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-046 | CRANKCASE | 1 | $3,324.95 | |
| 5 | 3206-054 | GASKET | 1 | $16.49 | |
| 6 | 3206-049 | FIX. SCREW | 1 | $20.63 | |
| 7 | 3206-045 | SLEEVE | 1 | $10.97 | |
| 8 | 3206-058 | TAPER PIN 8X16 | 1 | $1.64 | |
| 9 | 3206-047 | PLUG D.12 | 1 | $12.35 | |
| 10 | 3206-048 | PLUG DIAM. 30 | 1 | $5.51 | |
| 11 | 3206-053 | LOCKPIN 10 X 20 | 1 | $12.35 | |
| 12 | 3206-358 | GASKET,ENGINE FLANGE | 1 | $20.63 | |
| 13 | 3206-055 | SUPP.BEARING STD. | 1 | $66.95 | |
| 13 | 3206-056 | SUPP.BEARING -0,25 | 1 | $94.95 | |
| 13 | 3206-057 | SUPP.BEARING -0,50 | 1 | $94.95 | |
| 14 | 3206-050 | THRUST WASHER STD | 1 | $20.63 | |
| 14 | 3206-051 | THRUST WASHER +0,10 | 1 | $20.63 | |
| 14 | 3206-052 | THRUST WASHER +0,20 | 1 | $20.63 | |
| 15 | 3206-206 | COPPER GASKET DIAM 22 | 1 | $2.47 | |
| 16 | 3206-207 | PLUG M 16 X 15 | 1 | $6.34 | |
| 17 | 3206-193 | OIL FILTER CONNECTOR | 1 | $33.95 | |
| 18 | 3206-194 | FILTER,OIL- CARTRIDGE (MM 59) | 1 | $45.95 | |
| 19 | 3206-090 | ENGINE FLANGE | 1 | $150.95 | |
| 20 | 3206-091 | SEAL RING 70X88X8 | 1 | $85.95 | |
| 21 | 3206-088 | SCREW M 6 X 16 | 1 | $1.78 |
