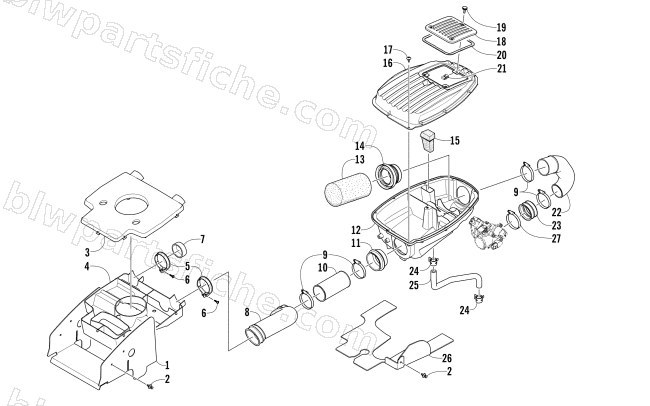

AIR INTAKE ASSEMBLY
2015 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2406-013 | SHROUD,SPLASH-AIR INTAKE (B BODY) | 1 | $37.95 | |
| 2 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 3 | 0413-091 | DIVERTER,AIR-IN | 1 | $40.95 | |
| 4 | 0413-093 | DIVERTER,AIR INTAKE-BOTTOM | 1 | $42.95 | |
| 5 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 6 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 7 | 0413-096 | CAP-AIR IN,BELT | 1 | $20.63 | |
| 8 | 0470-529 | BOOT,AIR IN-CARB | 1 | $64.95 | |
| 9 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 10 | 0470-875 | DUCT,INTAKE-DIVERTER:AIRBOX | 1 | $22.01 | |
| 11 | 0470-869 | BOOT,INTAKE-1-450 | 1 | $10.97 | |
| 12 | 0470-872 | BOTTOM, AIRBOX | 1 | $90.95 | |
| 13 | 0470-890 | FILTER,AIR-UNI | 1 | $47.95 | |
| 14 | 0470-888 | BOOT,HOUSING-FILTER | 1 | $10.97 | |
| 15 | 0470-891 | FILTER,CRANKCASE VENT | 1 | $3.16 | |
| 16 | 0470-873 | TOP, AIRBOX | 1 | $62.95 | |
| 17 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 18 | 0470-874 | COVER, ACCESS - AIRBOX | 1 | $18.95 | |
| 19 | 0423-996 | THUMB SCREW,M5X0.8X16 | 1 | $3.71 | |
| 20 | 0470-892 | SEAL,ACCESS COVER | 1 | $20.63 | |
| 21 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 22 | 0470-876 | DUCT,INTAKE-AIRBOX:T-BODY | 1 | $20.63 | |
| 23 | 0470-871 | BOOT,INTAKE-3-450 | 1 | $10.97 | |
| 24 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 25 | 0410-087 | HOSE,VENT-CRANKCASE | 1 | $16.49 | |
| 26 | 2416-388 | PANEL,SPLASH-DIE CUT-450 | 1 | $30.95 | |
| 27 | 0423-832 | CLAMP,HOSE-WORM DR-35-55/9mm | 1 | $5.51 |
