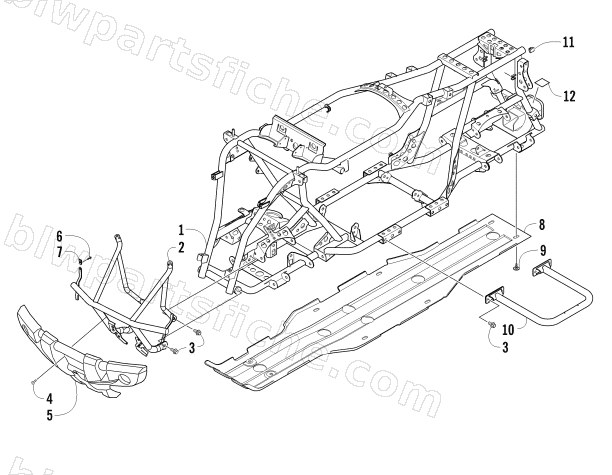

2015 Arctic Cat 450 — FRAME AND RELATED PARTS
2015 450
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-328 | BODY COMP, FRAME | 1 | $1,429.95 | |
| 2 | 3306-332 | BUMPER,FRONT | 1 | $148.95 | |
| 3 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 4 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 5 | 3306-289 | COVER,FRONT BUMPER (BLACK) | 1 | $47.95 | |
| 6 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 7 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 8 | 3313-755 | PLATE SKID | 1 | $74.95 | |
| 9 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 10 | 3313-351 | FOOTREST-BLACK | 1 | $66.95 | |
| 11 | 3306-329 | STOPPER RUBBER | 1 | $2.75 | |
| 12 | 1411-077 | R/B 4411-550 | 1 | $3.95 |
