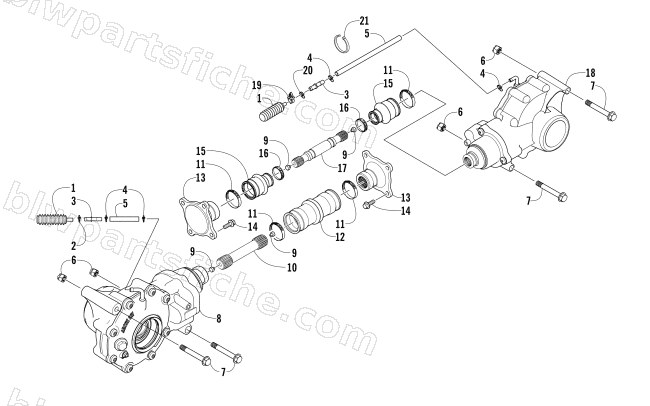

DRIVE TRAIN ASSEMBLY
2015 450
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-796 | BREATH TUBE RR GEAR ASSY | 1 | $66.95 | |
| 2 | 3323-149 | CLAMP,HOSE-DOUBLE WIRE | 1 | $1.50 | |
| 3 | 3323-150 | FITTING, BARB HOSE -INTAKE MANIFOLD | 1 | $1.92 | |
| 4 | 3313-684 | CLAMP D9.5 TUBE | 1 | $2.47 | |
| 5 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 6 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 7 | 3305-787 | BOLT FLANGE 10*110 | 1 | $4.13 | |
| 8 | 3306-265 | GEARCASE,FRONT (3.1)-ASSEMBLY | 1 | $1,434.95 | |
| 9 | 3313-783 | BUMPER DRIVESHAFT | 1 | $1.78 | |
| 10 | 3313-784 | SHAFT PROPELLER FRONT | 1 | $50.95 | |
| 11 | 3313-776 | CLAMP BOOT | 1 | $5.51 | |
| 12 | 3313-825 | BOOT,COUPLER-FRONT | 1 | $13.73 | |
| 13 | 3313-774 | FLANGE OUTPUT | 1 | $69.95 | |
| 14 | 3304-565 | BOLT FLANGE 8*20 | 1 | $1.50 | |
| 15 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 16 | 3313-777 | CLAMP 30MM-BOOT | 1 | $4.54 | |
| 17 | 3313-773 | SHAFT,PROPELLER-REAR | 1 | $64.95 | |
| 18 | 3306-023 | GEARCASE REAR ASSEMBLY | 1 | $1,291.95 | |
| 19 | 3323-152 | ROUTING CLIP,SNAP-IN | 1 | $1.92 | |
| 20 | 3303-349 | CLIP B10 TUBE | 1 | $0.95 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
