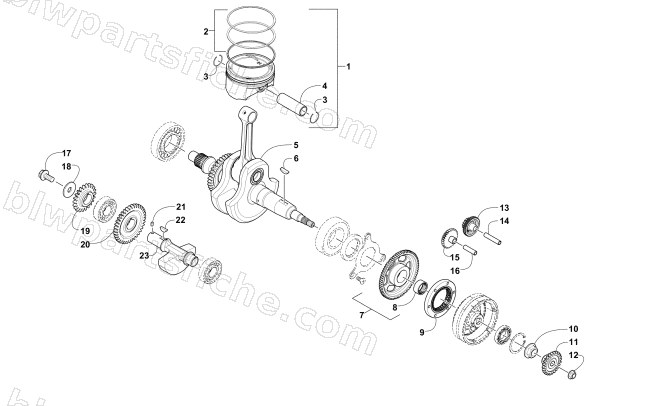

2015 Arctic Cat 450 — CRANKSHAFT, BALANCER, STARTER GEAR, AND PISTON ASSEMBLIES
2015 450
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0805-333 | PISTON SET (450) | 1 | $212.95 | |
| 2 | 0805-320 | RING SET,PISTON | 1 | $196.95 | |
| 3 | 0831-060 | CIRCLIP,PISTON PIN | 1 | $3.02 | |
| 4 | 0805-023 | PIN,PISTON | 1 | $37.95 | |
| 5 | 0805-013 | CRANKSHAFT ASSEMBLY | 1 | $1,010.95 | |
| 6 | 0829-039 | KEY WAY ACG | 1 | $3.57 | |
| 7 | 0815-023 | GEAR,STARTER CLUTCH-MFG PKG 73T | 1 | $163.95 | |
| 8 | 0832-069 | BEARING,NEEDLE ROLLER-31 X 39 X 18 | 1 | $90.95 | |
| 9 | 0802-044 | CLUTCH,ONE WAY-W/ HUB ASSEMBLY | 1 | $477.95 | |
| 10 | 3306-705 | NUT FLANGE 16 MM | 1 | $12.35 | |
| 11 | 0811-036 | GEAR,PRIMARY DRIVE | 1 | $79.95 | |
| 12 | 3303-333 | R/B 3307-058 | 1 | $0.95 | |
| 13 | 0815-031 | GEAR,STARTER IDLER-56/14T-NO.1 | 1 | $66.95 | |
| 14 | 0815-007 | PIN, STARTER IDLER GEAR NO. 1 | 1 | $6.75 | |
| 15 | 0815-022 | GEAR,STARTER IDLER-27T-NO.2 | 1 | $37.95 | |
| 16 | 0815-015 | PIN,STARTER IDLER GEAR-NO.2 | 1 | $6.75 | |
| 17 | 0826-118 | SCREW-CAP-HFH M10X1.25X20 W/ THREADLOCK | 1 | $3.57 | |
| 18 | 0828-091 | WASHER-STEEL-30X10X2.5 | 1 | $3.30 | |
| 19 | 0811-009 | GEAR, OIL PUMP DRIVE | 1 | $50.95 | |
| 20 | 0811-006 | GEAR, DRIVEN - NO. 1 | 1 | $114.95 | |
| 21 | 3304-144 | PIN DOWEL 4*6.5 | 1 | $1.37 | |
| 22 | 0829-037 | KEY-WOODRUFF-CB SHAFT | 1 | $2.61 | |
| 23 | 0811-035 | SHAFT,BALANCER | 1 | $156.95 |
