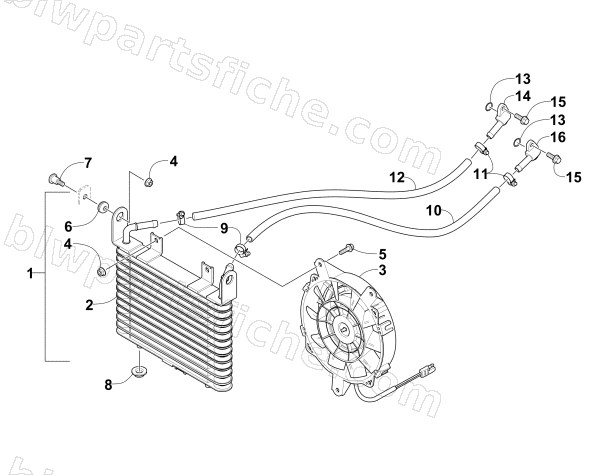

OIL COOLER ASSEMBLY
2015 400 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3323-202 | COOLER,OIL-ASSEMBLY | 1 | $283.95 | |
| 2 | 3323-203 | COOLER,OIL | 1 | $350.95 | |
| 3 | 3323-204 | FAN,COOLING-SMALL | 1 | $212.95 | |
| 4 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 5 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 6 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 7 | 3313-166 | BOLT,SHOULDER-9.6X9.55XM6 Z&Y | 1 | $2.61 | |
| 8 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 9 | 0423-098 | CLAMP,HOSE(NORMA FBS 17-12) | 1 | $2.75 | |
| 10 | 0410-044 | HOSE,OIL-30 (0410-014 CTL) | 1 | $47.95 | |
| 11 | 3313-772 | CLAMP 20.0 | 1 | $4.54 | |
| 12 | 3313-771 | HOSE OIL-OUT | 1 | $54.95 | |
| 13 | 0830-172 | O-RING,OIL FITTING-10.72 X 2.62 | 1 | $2.61 | |
| 14 | 0812-060 | FITTING,OIL-ANGLED | 1 | $17.87 | |
| 15 | 3303-617 | R/B 3307-049 | 1 | $0.65 | |
| 16 | 0812-059 | FITTING,OIL | 1 | $17.87 |
