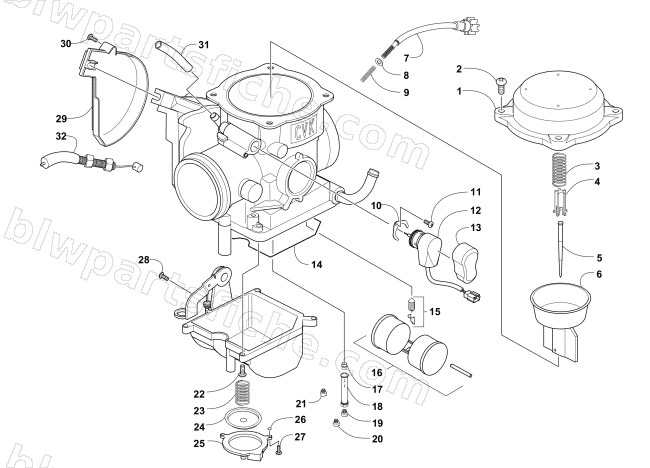

CARBURETOR
2015 400 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0470-737 | CARB,CVK 34mm-(GRAVITY)(366,350 KYMCO) | 1 | $1,018.95 | |
| 1 | 5507-001 | COVER, TOP | 1 | $66.95 | |
| 2 | 5507-002 | SCREW, TOP COVER | 1 | $0.40 | |
| 3 | 5507-240 | SPRING | 1 | $4.95 | |
| 4 | 5507-005 | SPRING SEAT | 1 | $3.16 | |
| 5 | 5507-243 | JET NEEDLE | 1 | $74.95 | |
| 6 | 5507-004 | PISTON, VACUUM | 1 | $126.95 | |
| 7 | 5507-027 | STOP SCREW COMP. | 1 | $122.95 | |
| 8 | 5507-028 | WASHER | 1 | $0.40 | |
| 9 | 5507-029 | SPRING | 1 | $5.92 | |
| 10 | 5507-115 | PLATE | 1 | $17.87 | |
| 11 | 5507-117 | SCREW | 1 | $1.23 | |
| 12 | 5507-180 | AUTO BY-ST-ASS'Y | 1 | $268.95 | |
| 13 | 5507-114 | COVER | 1 | $66.95 | |
| 14 | 5507-067 | O-RING, FLOAT CHAMBER | 1 | $16.49 | |
| 15 | 5507-107 | FLOAT VALVE SET | 1 | $33.95 | |
| 16 | 5507-039 | FLOAT SET | 1 | $37.95 | |
| 17 | 5507-007 | NEEDLE JET | 1 | $26.95 | |
| 18 | 5507-047 | HOLDER, NEEDLE- JET | 1 | $26.95 | |
| 19 | 3305-434 | MAIN JET #112 | 1 | $13.73 | |
| 20 | 5507-097 | STARTER JET 75 | 1 | $20.63 | |
| 21 | 5507-246 | JET,SLOW #38 | 1 | $20.63 | |
| 22 | 5507-017 | SCREW | 1 | $7.30 | |
| 23 | 5507-032 | SPRING | 1 | $13.73 | |
| 24 | 5507-197 | DIAPHRAGM | 1 | $42.95 | |
| 25 | 5507-198 | PUMP HOUSING | 1 | $20.63 | |
| 26 | 5507-034 | U RING | 1 | $3.02 | |
| 27 | 5507-035 | SCREW | 1 | $1.23 | |
| 28 | 5507-050 | SCREW, DRAIN | 1 | $3.02 | |
| 29 | 5507-036 | COVER | 1 | $4.95 | |
| 30 | 5507-037 | SCREW(TOP COVER) | 1 | $0.95 | |
| 31 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 32 | 3306-275 | CABLE COMP, THROT | 1 | $26.95 |
