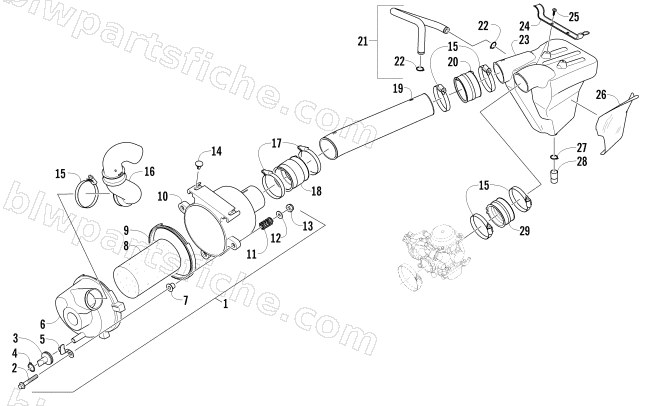

AIR INTAKE ASSEMBLY
2015 400 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-395 | AIR BOX-ASSEMBLY | 1 | $133.95 | |
| 2 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 3 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 4 | 3313-705 | CLAMP,D 12.5 | 1 | $4.95 | |
| 5 | 3313-375 | LATCH,AIR BOX | 1 | $8.21 | |
| 6 | 3313-376 | COVER,AIR BOX-CYCLONIC | 1 | $26.95 | |
| 7 | 3313-853 | SPACER STEEL | 1 | $4.26 | |
| 8 | 3313-378 | FILTER,AIR-UNI FOAM | 1 | $50.95 | |
| 9 | 3313-446 | GASKET,AIR BOX | 1 | $16.49 | |
| 10 | 3313-377 | BODY,AIR BOX-CYCLINDER | 1 | $26.95 | |
| 11 | 0402-678 | SPRING,SHIFT,LEVER | 1 | $10.97 | |
| 12 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 13 | 3303-269 | NUT U FLANGE 8MM | 1 | $1.50 | |
| 14 | 3305-448 | CLIP,MUDGUARD | 1 | $2.33 | |
| 15 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 16 | 3313-816 | BOOT INTAKE-AIR BOX | 1 | $33.95 | |
| 17 | 3313-817 | CLAMP D70 | 1 | $6.89 | |
| 18 | 3313-275 | BOOT,DUCT- AIR CHAMBER | 1 | $9.59 | |
| 19 | 3313-063 | DUCT,INTAKE-CARB | 1 | $30.95 | |
| 20 | 3313-274 | BOOT, CHAMBER-DUCT | 1 | $5.37 | |
| 21 | 3313-397 | HOSE,CRANK CASE VENT | 1 | $2.61 | |
| 22 | 3304-167 | CLAMP D18 TUBE | 1 | $3.57 | |
| 23 | 3313-224 | CHAMBER,AIR INTAKE | 1 | $102.95 | |
| 24 | 3313-356 | BRACKET,MOUNT-AIR CHAMBER | 1 | $6.34 | |
| 25 | 3304-409 | BOLT WASHER 5*12 | 1 | $0.81 | |
| 26 | 3313-362 | SHIELD,RH | 1 | $10.97 | |
| 27 | 3313-706 | CLAMP,D 14.8 | 1 | $4.95 | |
| 28 | 3313-543 | CAP,DRAIN PIPE | 1 | $3.02 | |
| 29 | 3313-551 | BOOT,CARB-AIR CHAMBER | 1 | $6.89 |
