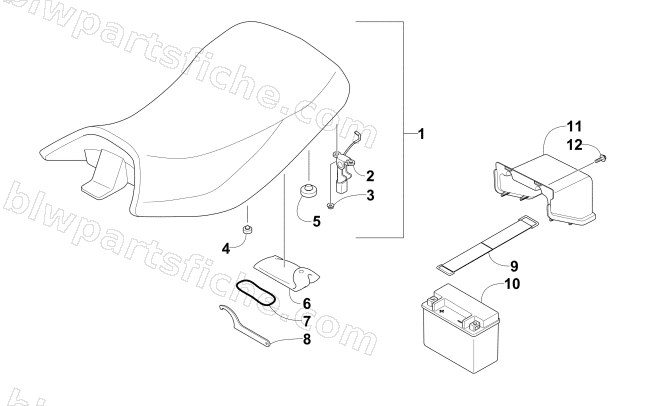

2015 Arctic Cat 300 2X4 UTILITY — SEAT, BATTERY, AND TOOL KIT ASSEMBLIES
2015 300 2X4 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-985 | SEAT ASSY | 1 | $288.95 | |
| 2 | 3303-986 | HOOK ASSY SEAT LOCK | 1 | $26.95 | |
| 3 | 3305-929 | NUT SEAT LOCK | 1 | $2.61 | |
| 4 | 3306-470 | RUBBER SEAT CUSHION | 1 | $1.92 | |
| 5 | 3306-458 | BUMPER,SEAT | 1 | $2.61 | |
| 6 | 3304-648 | TOOL SET | 1 | $47.95 | |
| 7 | 3303-242 | BAND TOOL SET | 1 | $1.64 | |
| 8 | 1441-797 | WRENCH,SPANNER | 1 | $0.00 | |
| 9 | 3303-937 | BAND BATTERY | 1 | $13.73 | |
| 10 | 3304-275 | BATTERY YTX12-BS | 1 | $163.95 | |
| 11 | 3306-689 | COVER BATTERY (RED) | 1 | $20.63 | |
| 12 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 |
