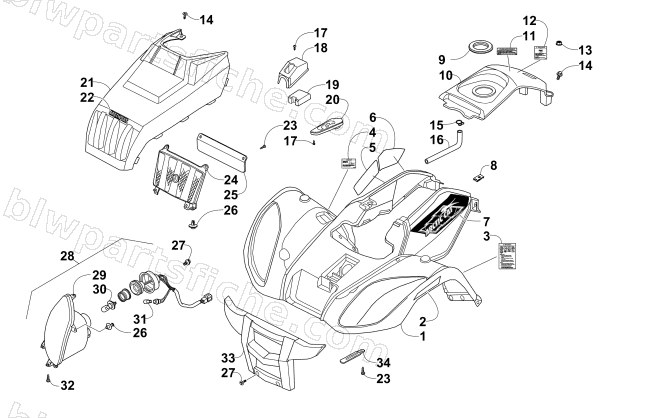

2015 Arctic Cat 150 UTILITY — FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
2015 150 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-103 | FENDER FRONT (RED) W/DECALS | 1 | $188.95 | |
| 2 | 1411-180 | REFLECTOR,FRONT-RH | 1 | $13.73 | |
| 2 | 1411-181 | REFLECTOR,FRONT-LH | 1 | $13.73 | |
| 3 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 4 | 0411-836 | DECAL,WARNING HILL (MINI) | 1 | $82.95 | |
| 8 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 9 | 3303-721 | TRAY TANK COVER | 1 | $10.97 | |
| 10 | 3306-104 | COVER TANK(RED) W/DECALS | 1 | $47.95 | |
| 11 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 12 | 1411-377 | DECAL,WARNING-AGE (14) | 1 | $16.49 | |
| 13 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 14 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 15 | 3303-349 | CLIP B10 TUBE | 1 | $0.95 | |
| 16 | 3305-701 | TUBE ASSY FUEL DRAIN | 1 | $3.71 | |
| 17 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 18 | 3305-926 | COVER CVT ELEMENT | 1 | $2.88 | |
| 19 | 3305-096 | CVT ELEMENT | 1 | $3.30 | |
| 20 | 3305-092 | GUIDE COVER CHANGE HANDLE | 1 | $6.34 | |
| 21 | 3305-697 | COVER FRONT (RED) | 1 | $69.95 | |
| 22 | 2411-465 | DECAL,"ARCTIC CAT" | 1 | $5.65 | |
| 23 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 24 | 3305-095 | GRILLE FRONT (RED) | 1 | $12.35 | |
| 25 | 3305-925 | FENDER,INNER | 1 | $6.47 | |
| 26 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 27 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 28 | 3303-844 | LIGHT ASSY R HEAD | 1 | $164.95 | |
| 28 | 3303-845 | LIGHT ASSY L HEAD | 1 | $187.95 | |
| 29 | 3304-643 | UNIT HEAD LIGHT RH | 1 | $129.95 | |
| 29 | 3304-644 | UNIT HEAD LIGHT LH | 1 | $174.95 | |
| 30 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 31 | 3303-847 | BULB POSITION LIGHT 12V5W | 1 | $5.65 | |
| 32 | 3304-645 | SCREW TAPPING 5*12 | 1 | $1.23 | |
| 33 | 3306-148 | COVER BUMPER,FRONT (FRONT BUMPER/FASCIA) | 1 | $42.95 | |
| 34 | 3304-156 | CLIP 2*70 | 1 | $1.92 |
