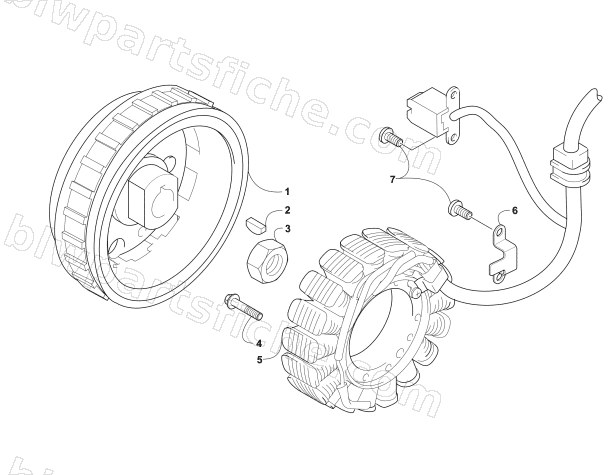

MAGNETO ASSEMBLY
2015 1000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0802-063 | ROTOR,IGNITION,EFI (H2-SO-SJ) | 1 | $220.95 | |
| 2 | 0829-012 | KEY, MAGNETO | 1 | $3.30 | |
| 3 | 0827-076 | NUT,HEX-M20X1.5 Z&C W/SG 2510 (ORG) | 1 | $32.95 | |
| 4 | 8409-632 | SCREW,CAP-HFH M6X1.25X30 CL10.9 W/204 | 1 | $1.37 | |
| 5 | 0802-073 | STATOR,IGNITION-OM (SO) | 1 | $251.95 | |
| 6 | 0831-064 | CLAMP,WIRE-STATOR | 1 | $17.87 | |
| 7 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 |
