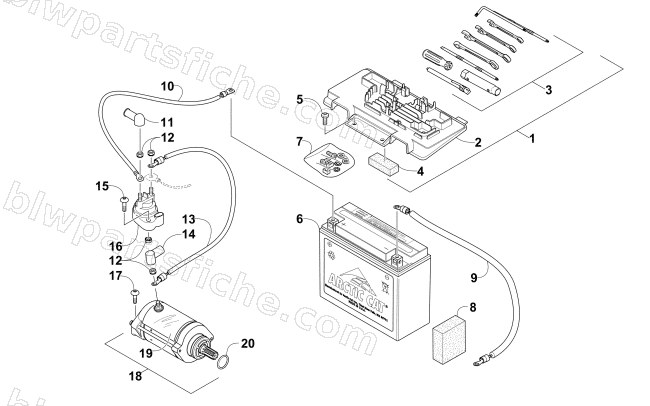

BATTERY AND STARTER ASSEMBLY
2015 1000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5993-040 | TRAY,TOOL-ASSY | 1 | $100.95 | |
| 2 | 4406-136 | COVER,BATTERY/TOOL TRAY | 1 | $69.95 | |
| 3 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 4 | 0417-016 | PAD,BATTERY-0.75" | 1 | $2.33 | |
| 5 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 6 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 7 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 8 | 0417-012 | FOAM,BATTERY | 1 | $2.88 | |
| 9 | 0445-063 | CABLE,BATTERY-ENGINE (27" BLK #6) | 1 | $33.95 | |
| 10 | 0445-062 | CABLE,BATTERY-SOLENOID (8.5" RED #6) | 1 | $9.59 | |
| 11 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 12 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 13 | 0445-066 | CABLE,SOLENOID-STARTER (56" RED #6) | 1 | $45.95 | |
| 14 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 15 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 16 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 17 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 18 | 0825-030 | MOTOR,STARTER ASSEMBLY (PD 11.25) | 1 | $275.95 | |
| 19 | 0412-677 | SHIELD,HEAT-STARTER (SEM) | 1 | $2.47 | |
| 20 | 0830-228 | O-RING,33.5MMX3MM | 1 | $5.09 |
