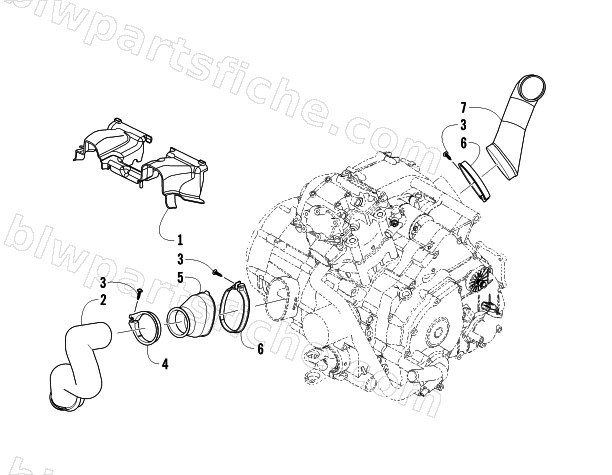

2014 Arctic Cat XC 450 EFI / — CASE/BELT COOLING ASSEMBLY
2014 XC 450 EFI /
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-455 | COVER WATERPROOF | 1 | $12.35 | |
| 2 | 3313-065 | DUCT,BELT-AIR IN | 1 | $26.95 | |
| 3 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 4 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 5 | 3313-782 | BOOT AIR-IN | 1 | $17.87 | |
| 6 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 7 | 3306-532 | BOOT AIR-OUT | 1 | $47.95 |
