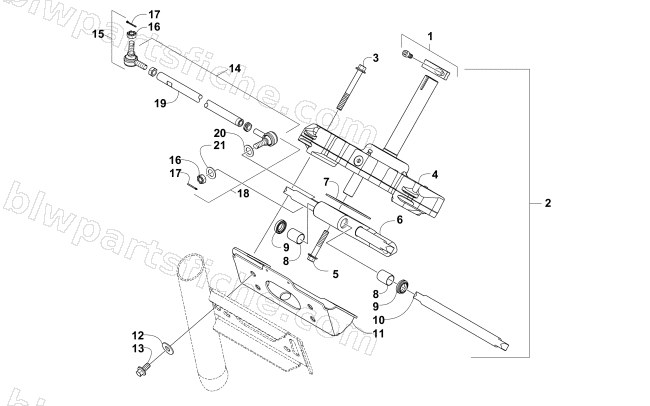

RACK AND PINION ASSEMBLY
2014 WILDCAT X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0405-463 | COLLAR,RETAINING-STEERING | 1 | $34.95 | |
| 2 | 0505-814 | RACK AND PINION ASSY | 1 | $2,166.95 | |
| 3 | 8408-872 | SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y W/204 | 1 | $5.92 | |
| 4 | 0505-826 | RACK & PINION | 1 | $1,660.95 | |
| 5 | 8409-847 | SCREW,CAP-HFH M8X1.25X45-Z&Y-RED | 1 | $4.68 | |
| 6 | 0505-888 | KIT,RACK CARRIER (FOR -814 RACK) | 1 | $393.95 | |
| 7 | 0405-414 | PAD, FELT STEERING | 1 | $16.49 | |
| 8 | 0405-445 | BUSHING, CARRIER-STEERING | 1 | $17.87 | |
| 9 | 0405-475 | SEAL,STEERING SUPPORT | 1 | $19.25 | |
| 10 | 0405-457 | SUPPORT BAR, STEERING RACK | 1 | $140.95 | |
| 11 | 4506-688 | BRKT,MTG-STEERING RACK-PTD BLK | 1 | $69.95 | |
| 12 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 13 | 8408-818 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y W/204 | 1 | $1.78 | |
| 14 | 0505-815 | KIT,TIE ROD | 1 | $177.95 | |
| 15 | 0505-812 | KIT,TIE ROD OUTER | 1 | $77.95 | |
| 16 | 1423-072 | NUT,CASTLE M12 X 1.25 | 1 | $2.88 | |
| 17 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 18 | 0505-811 | KIT,TIE ROD INNER | 1 | $77.95 | |
| 19 | 0405-404 | TIE ROD | 1 | $29.95 | |
| 20 | 1423-068 | WASHER,FLAT-21.5 ID X 11.98 OD X 2.5 | 1 | $5.78 | |
| 21 | 1423-071 | WASHER,FLAT-21.5 ID X 11.98 OD X 1.0 | 1 | $6.06 |
