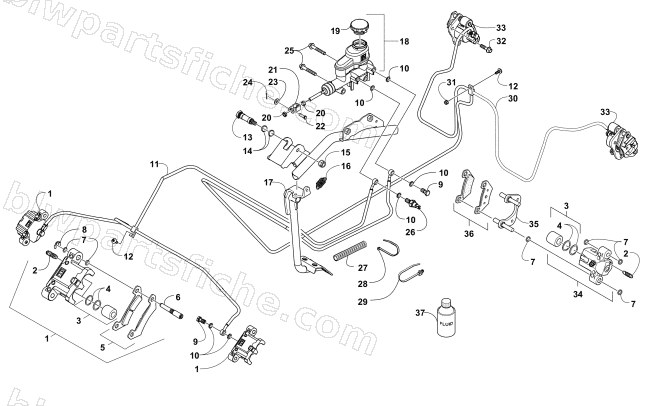

HYDRAULIC BRAKE ASSEMBLY
2014 WILDCAT X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-030 | BRAKE,CALIPER-1.25X2-RH | 1 | $221.95 | |
| 1 | 2502-031 | BRAKE,CALIPER-1.25X2-LH | 1 | $221.95 | |
| 2 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 3 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 5 | 2502-034 | KIT,BRAKE PADS | 1 | $62.95 | |
| 6 | 2402-106 | PIN,BRAKE PAD MOUNT (1.25X2) | 1 | $6.34 | |
| 7 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 8 | 2402-107 | CLIP,RETAINING (1.25X2) | 1 | $1.23 | |
| 9 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 10 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 11 | 2402-118 | HOSE,BRAKE-FRONT | 1 | $230.95 | |
| 12 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 13 | 0402-872 | AXLE-FOOTBRAKE | 1 | $37.95 | |
| 14 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 15 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 16 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 17 | 2502-075 | PEDAL,BRAKE-PTD PWD PLAT | 1 | $105.95 | |
| 18 | 2502-043 | CYLINDER,MASTER BRAKE SIDEWINDER II-ASSY | 1 | $235.95 | |
| 19 | 2502-044 | KIT,SERVICE CAP-TANDEM MC SIDEWINDER II | 1 | $53.95 | |
| 20 | 0402-592 | NUT, JAM,M8 X 1.25 | 1 | $0.95 | |
| 21 | 1402-520 | CLEVIS | 1 | $47.95 | |
| 22 | 1402-377 | PIN,CLEVIS-1/4X51/64 Z&Y | 1 | $10.97 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 25 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 26 | 3313-239 | SWITCH-BRAKE PRESSURE-BANJO | 1 | $54.95 | |
| 27 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 29 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 | |
| 30 | 1402-955 | HOSE,REAR BRAKE-WILDCAT | 1 | $283.95 | |
| 31 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 32 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 33 | 1436-423 | R/B 2502-575 | 1 | $432.95 | |
| 33 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 34 | 1436-161 | KIT-HOUSING,PISTONS,SEALS,BLEADER-LH | 1 | $268.95 | |
| 34 | 1436-160 | KIT-HOUSING,PISTONS,SEALS,BLEADER-RH | 1 | $266.95 | |
| 35 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 36 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 37 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 |
