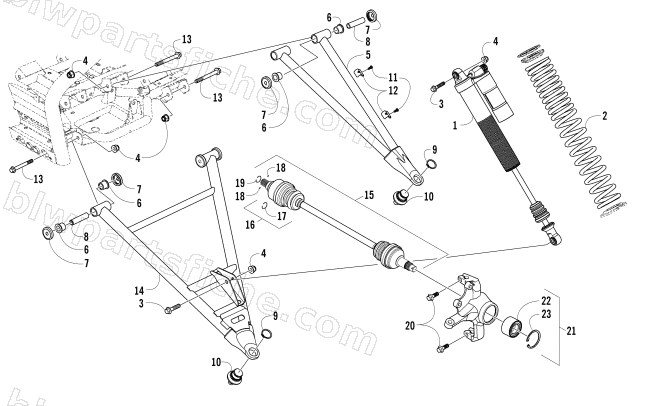

FRONT SUSPENSION ASSEMBLY
2014 WILDCAT X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0403-343 | SHOCK,FRONT (FOX) | 1 | $729.95 | |
| 2 | 0503-646 | SPRING,FRONT PROGRESSIVE-PTD WHITE | 1 | $117.95 | |
| 3 | 8409-050 | SCREW,CAP-HFH M10X1.25X50 CL10.9 Z&Y | 1 | $1.92 | |
| 4 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 5 | 0503-762 | A-ARM,FR-UPR-RH-ASSY-N. BLUE | 1 | $324.95 | |
| 5 | 0503-763 | A-ARM,FR-UPR-LH-ASSY-N. BLUE | 1 | $324.95 | |
| 5 | 0503-724 | A-ARM,FR-UPR-RH-ASSY-VIB RED | 1 | $324.95 | |
| 5 | 0503-725 | A-ARM,FR-UPR-LH-ASSY-VIB RED | 1 | $324.95 | |
| 5 | 0503-722 | A-ARM,FR-UPR-RH-ASSY-TAG | 1 | $324.95 | |
| 5 | 0503-723 | A-ARM,FR-UPR-LH-ASSY-TAG | 1 | $324.95 | |
| 6 | 0403-264 | BUSHING,SUSPENSION | 1 | $13.73 | |
| 7 | 1423-204 | SEAL,SUSPENSION | 1 | $4.95 | |
| 8 | 0403-250 | SLEEVE, SUSPENSION | 1 | $6.75 | |
| 9 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 10 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 11 | 0423-946 | SCREW,SELF TAP-TSPNH-M5X0.8X12 BLK | 1 | $0.68 | |
| 12 | 0403-257 | BRACKET,BRAKE LINE - 1" OD | 1 | $2.06 | |
| 13 | 8413-090 | SCREW,CAP-HFH M10X1.25X90 CL10.9 SILV | 1 | $3.85 | |
| 14 | 0503-774 | A-ARM,FR-LWR-RH-ASSY-N. BLUE | 1 | $371.95 | |
| 14 | 0503-775 | A-ARM,FR-LWR-LH-ASSY-N. BLUE | 1 | $371.95 | |
| 14 | 0503-694 | A-ARM,FR-LWR-RH-ASSY-VIB RED | 1 | $371.95 | |
| 14 | 0503-695 | A-ARM,FR-LWR-LH-ASSY-VIB RED | 1 | $371.95 | |
| 14 | 0503-692 | A-ARM,FR-LWR-RH-ASSY-TAG | 1 | $371.95 | |
| 14 | 0503-693 | A-ARM,FR-LWR-LH-ASSY-TAG | 1 | $371.95 | |
| 15 | 1502-774 | HALFSHAFT,FRONT LOCK-DOUBLE BELL-S3 | 1 | $454.95 | |
| 16 | 2436-112 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 17 | 1441-988 | CIRCLIP,HALFSHAFT-INTERNAL | 1 | $1.78 | |
| 18 | 1402-885 | PIN,TRANSFER,SHORT-COUPLER AXLE | 1 | $1.92 | |
| 19 | 1402-889 | CIRCLIP,22MM | 1 | $1.78 | |
| 20 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 21 | 0503-548 | KNUCKLE,FRONT-RH-ASSY (W4) | 1 | $351.95 | |
| 21 | 0503-549 | KNUCKLE, FRONT-LH-ASSY (W4) | 1 | $351.95 | |
| 22 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 23 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
