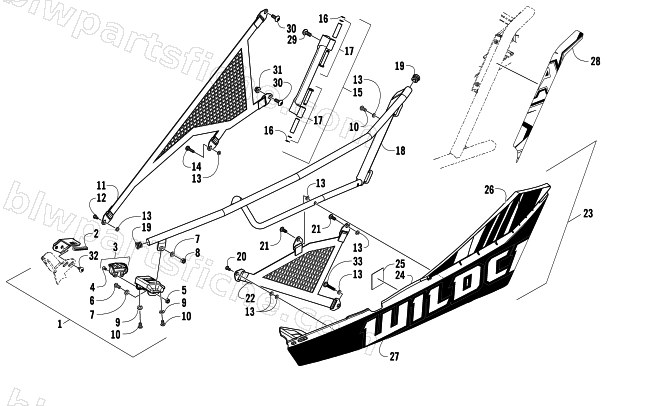

DOOR ASSEMBLY
2014 WILDCAT X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1436-800 | KIT,BUCKLE-RH-ASSY | 1 | $171.95 | |
| 1 | 1436-801 | KIT,BUCKLE-LH-ASSY | 1 | $171.95 | |
| 2 | 4406-262 | BUMPER,LATCH | 1 | $3.95 | |
| 3 | 1436-475 | TONGUE GUIDE-DOOR-ASSY | 1 | $41.95 | |
| 4 | 1423-155 | SFH SCREW BLK CL10.9 M5X12 (ISO 10642) | 1 | $2.47 | |
| 5 | 1423-154 | HEX NYLON NUT CL8 BLK ZINC M5 (DIN 985) | 1 | $0.95 | |
| 6 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 7 | 1423-119 | FLAT WASHER BLK MAGNI 575 COATING M6 | 1 | $3.30 | |
| 8 | 1423-153 | HEX NYLON NUT CL8 BLK ZINC M6(DIN 985) | 1 | $0.95 | |
| 9 | 8051-213 | R/B 8051-212 | 1 | $0.35 | |
| 10 | 1423-113 | SCREW,CAP BUTTON HEAD TORX BLK M6-1X10 | 1 | $3.85 | |
| 11 | 4406-304 | NET,FABRIC-UPPER | 1 | $43.95 | |
| 12 | 1423-206 | BOLT,SHOULDER-M5 X 0.8 X 15mm | 1 | $5.95 | |
| 13 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 14 | 1423-186 | BOLT,SHOULDER-M5X0.8X25MM | 1 | $10.97 | |
| 15 | 1436-476 | HINGE-DOOR-RH-ASSY | 1 | $90.95 | |
| 15 | 1436-454 | HINGE-DOOR-LH-ASSY | 1 | $90.95 | |
| 16 | 1423-118 | CIRCLIP BLK MAGNI 575 COATING (8MM) | 1 | $6.89 | |
| 17 | 0518-096 | KIT,DOOR HINGE PIN | 1 | $39.95 | |
| 18 | 5506-174 | FRAME,DOOR-RH-BLACK | 1 | $241.95 | |
| 18 | 5506-175 | FRAME,DOOR-LH-BLACK | 1 | $241.95 | |
| 19 | 4406-013 | CAP,PLASTIC | 1 | $3.57 | |
| 20 | 1423-196 | BOLT,SHOULDER-M6 X 1.0 X 12mm LG | 1 | $5.37 | |
| 21 | 1423-197 | BOLT,SHOULDER-M6 X 1.0 X 25mm LG | 1 | $3.71 | |
| 22 | 4406-305 | NET,FABRIC-LOWER | 1 | $43.95 | |
| 23 | 0518-142 | DOOR,PANEL W/DECALS-VB-RH(WC X) | 1 | $341.95 | |
| 23 | 0518-143 | DOOR,PANEL W/DECALS-VB-LH(WC X) | 1 | $341.95 | |
| 23 | 0518-138 | DOOR,PANEL W/DECALS-VR-RH (WC X) | 1 | $341.95 | |
| 23 | 0518-139 | DOOR,PANEL W/DECALS-VR-LH(WC X) | 1 | $341.95 | |
| 23 | 0518-140 | DOOR,PANEL W/DECALS-TAG-RH(WC X) | 1 | $341.95 | |
| 23 | 0518-141 | DOOR,PANEL W/DECALS-TAG-LH(WC X) | 1 | $341.95 | |
| 24 | 4406-246 | PANEL,DOOR-RH | 1 | $254.95 | |
| 24 | 0518-097 | DOOR,W/WARNING-DECAL-LH | 1 | $341.95 | |
| 26 | 3411-694 | DECAL,DOOR UPR RH-VIP BLUE | 1 | $17.87 | |
| 26 | 3411-695 | DECAL,DOOR UPR LH-VIP BLUE | 1 | $17.87 | |
| 26 | 3411-646 | DECAL,DOOR UPPER RH-VIB RED | 1 | $15.11 | |
| 26 | 3411-647 | DECAL,DOOR UPPER LH-VIB RED | 1 | $15.11 | |
| 26 | 3411-670 | DECAL,DOOR UPR RH-TAG | 1 | $17.87 | |
| 26 | 3411-671 | DECAL,DOOR UPR LH-TAG | 1 | $17.87 | |
| 27 | 3411-696 | DECAL,DOOR LWR RH-VIP BLUE | 1 | $66.95 | |
| 27 | 3411-697 | DECAL,DOOR LWR LH-VIP BLUE | 1 | $66.95 | |
| 27 | 3411-648 | DECAL,DOOR LWR RH-VIB RED | 1 | $50.95 | |
| 27 | 3411-649 | DECAL,DOOR LWR LH-VIB RED | 1 | $50.95 | |
| 27 | 3411-672 | DECAL,DOOR LWR RH-TAG | 1 | $66.95 | |
| 27 | 3411-673 | DECAL,DOOR LWR LH-TAG | 1 | $66.95 | |
| 28 | 3411-702 | DECAL,DOOR FRAME RH-VIP BLUE | 1 | $12.35 | |
| 28 | 3411-703 | DECAL,DOOR FRAME LH-VIP BLUE | 1 | $12.35 | |
| 28 | 3411-654 | DECAL,DOOR FRAME RH-VIB RED | 1 | $10.97 | |
| 28 | 3411-655 | DECAL,DOOR FRAME LH-VIB RED | 1 | $10.97 | |
| 28 | 3411-678 | DECAL,DOOR FRAME RH-TAG | 1 | $12.35 | |
| 28 | 3411-679 | DECAL,DOOR FRAME LH-TAG | 1 | $12.35 | |
| 29 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 30 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 31 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 32 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 | |
| 33 | 1423-205 | SCREW,SHOULDER-M6 X 1.0 X 35-BLK | 1 | $2.47 |
