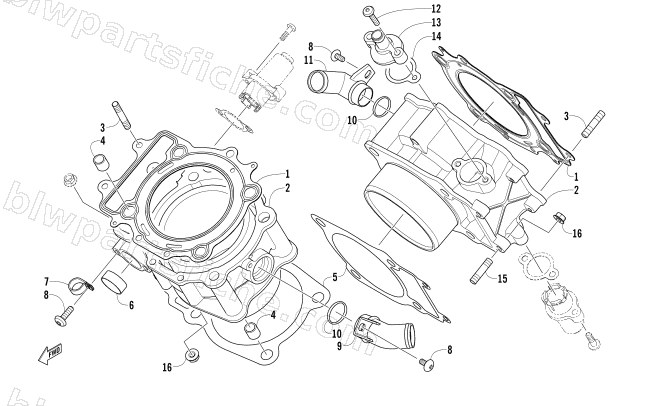

CYLINDER ASSEMBLY
2014 WILDCAT X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0830-209 | GASKET, HEAD | 1 | $100.95 | |
| 2 | 0804-061 | CYLINDER,950 V2-MACH (HC) | 1 | $595.95 | |
| 3 | 0827-002 | STUD, M6 x 1 x 38 | 1 | $2.47 | |
| 4 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 5 | 0830-193 | GASKET,BASE-103.5 | 1 | $66.95 | |
| 6 | 0804-037 | PLUG,CYLINDER,VTWIN | 1 | $2.33 | |
| 7 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 8 | 8468-612 | SCREW,MACH-TSPNH M5X0.8X20 CL8.8 BLK | 1 | $1.23 | |
| 9 | 0804-046 | R/B 0804-068 | 1 | $56.95 | |
| 10 | 0830-007 | O-RING, 21.9 ID X 2.7 W | 1 | $0.68 | |
| 11 | 0804-030 | UNION,WATER HOSE- | 1 | $56.95 | |
| 12 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 13 | 0801-174 | COVER,BREATHER-ASSY (CHAIN GALLEY) | 1 | $32.95 | |
| 14 | 0830-134 | GASKET,CHAIN TENSIONER & SHIFT, VTWIN | 1 | $2.33 | |
| 15 | 0827-018 | STUD, M6 x 1 x 32 | 1 | $9.65 | |
| 16 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 |
