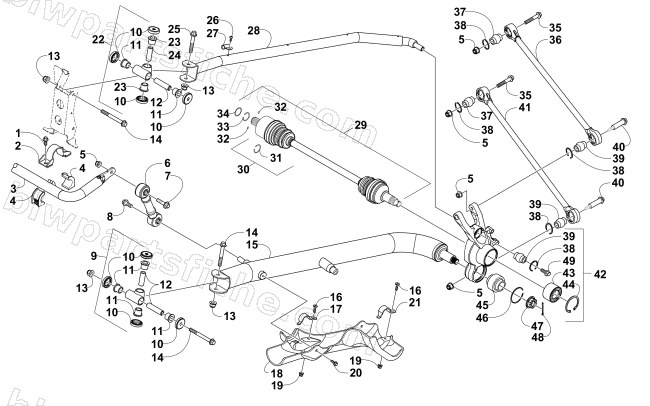

REAR SUSPENSION ASSEMBLY
2014 WILDCAT X LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1423-150 | SCREW,CAP-HSH M10 X 1.25 X 20 | 1 | $3.85 | |
| 2 | 0504-724 | CLAMP, SWAYBAR BUSHING - PTD BLK | 1 | $19.25 | |
| 3 | 0504-782 | SWAYBAR-PTD BLK | 1 | $318.95 | |
| 4 | 0404-304 | BUSHING,SWAYBAR | 1 | $27.95 | |
| 5 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 6 | 0404-302 | LINK,SWAYBAR | 1 | $61.95 | |
| 7 | 8409-045 | SCREW,CAP-HFH M10X1.25X45 CL10.9 Z&Y | 1 | $1.50 | |
| 8 | 8409-041 | SCREW,CAP-HFH M10X1.25X40 CL10.9 W/2353 | 1 | $2.06 | |
| 9 | 0504-748 | MOUNT, LOWER TRAILING ARM - ASSY | 1 | $165.95 | |
| 10 | 1423-159 | SEAL, SUSPENSION | 1 | $12.35 | |
| 11 | 2402-077 | BEARING, FLANGE-18 ID X 26 OD X 21 | 1 | $16.49 | |
| 12 | 0404-285 | SLEEVE, REAR SUSPENSION | 1 | $26.95 | |
| 13 | 8427-202 | NUT,HEX FLG-NYL LOCK M12X1.25 CL8 Z&Y | 1 | $1.23 | |
| 14 | 8413-200 | SCREW,CAP-HFH M12X1.25X100 CL10.9 SILV | 1 | $5.65 | |
| 15 | 0504-791 | ARM, LOWER TRAILING-PTD VIBRANT RED | 1 | $350.95 | |
| 15 | 0504-784 | ARM, LOWER TRAILING-PTD BLACK | 1 | $350.95 | |
| 16 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 17 | 0504-701 | BRKT,SKIDPLATE-FRNT-PTD | 1 | $10.97 | |
| 18 | 2416-952 | GUARD, REAR SUSPENSION-RH | 1 | $19.25 | |
| 18 | 2416-953 | GUARD, REAR SUSPENSION-LH | 1 | $19.25 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 21 | 0504-700 | BRKT,SKIDPLATE-REAR-PTD | 1 | $10.97 | |
| 22 | 0504-756 | MOUNT,UPPER TRAILING ARM-ASSY | 1 | $165.95 | |
| 23 | 2402-076 | BEARING, FLANGE-18 ID X 26 OD X 16 | 1 | $12.35 | |
| 24 | 0404-289 | SLEEVE,REAR SUSPENSION | 1 | $49.95 | |
| 25 | 8413-275 | SCREW,CAP-HFH M12X1.25X75 CL10.9 SILV | 1 | $3.99 | |
| 26 | 0423-946 | SCREW,SELF TAP-TSPNH-M5X0.8X12 BLK | 1 | $0.68 | |
| 27 | 0403-271 | BRACKET,BRAKE LINE - 1.25" OD | 1 | $1.92 | |
| 28 | 0504-789 | ARM,UPPER TRAILING - PTD VIBR RED MTLC | 1 | $148.95 | |
| 28 | 0504-743 | ARM, UPPER TRAILING -PTD BLACK | 1 | $148.95 | |
| 29 | 1502-914 | HALFSHAFT,HP REAR-DB COUPLER-HT | 1 | $559.95 | |
| 30 | 2436-112 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 31 | 1441-988 | CIRCLIP,HALFSHAFT-INTERNAL | 1 | $1.78 | |
| 32 | 1402-885 | PIN,TRANSFER,SHORT-COUPLER AXLE | 1 | $1.92 | |
| 33 | 1402-889 | CIRCLIP,22MM | 1 | $1.78 | |
| 34 | 1402-963 | O-RING,H-SHAFT-HT-31.75MM ID X 1.78MM | 1 | $5.95 | |
| 35 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 | |
| 36 | 0504-738 | LINK,UPPER LATERAL-BLACK-ASSY | 1 | $156.95 | |
| 37 | 0404-249 | BEARING,SUSPENSION - 10MM BORE | 1 | $37.95 | |
| 38 | 1423-085 | SNAP RING - 35MM | 1 | $1.64 | |
| 39 | 0404-248 | BEARING, SUSPENSION-15MM BORE | 1 | $37.95 | |
| 40 | 1423-087 | BOLT, SHOULDER - REAR SUSPENSION | 1 | $12.35 | |
| 41 | 0504-736 | LINK,LOWER LATERAL-BLACK-ASSY | 1 | $159.95 | |
| 42 | 0504-840 | KNUCKLE,REAR-RH-ASSEMBLY (KO) | 1 | $352.95 | |
| 42 | 0504-841 | KNUCKLE,REAR-LH-ASSEMBLY (KO) | 1 | $352.95 | |
| 43 | 1402-027 | BEARING, WHEEL | 1 | $43.95 | |
| 44 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 45 | 0404-243 | BEARING,SUSPENSION-28MM BORE | 1 | $53.95 | |
| 46 | 1423-086 | SNAP RING - 55MM | 1 | $2.06 | |
| 47 | 0423-394 | NUT,CASTLE FLANGE-M18X1.5 Z&Y | 1 | $13.73 | |
| 48 | 1423-147 | PIN,SPRING-4MM DIA X 30MM LG | 1 | $0.54 | |
| 49 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 |
