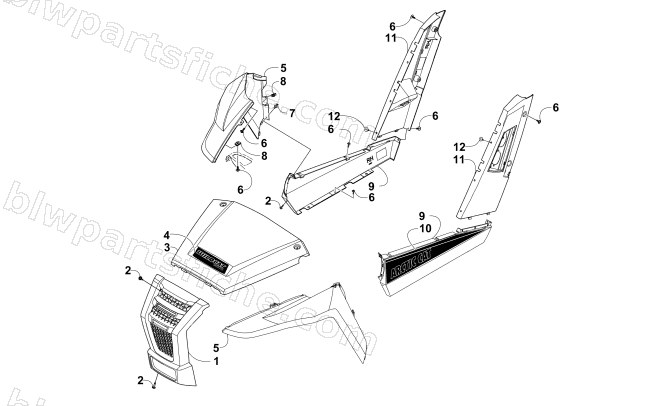

FRONT AND SIDE PANEL ASSEMBLIES
2014 WILDCAT TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-263 | FASCIA,FRONT | 1 | $33.95 | |
| 2 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 3 | 4406-269 | PANEL,HOOD-BLACK | 1 | $82.95 | |
| 4 | 4411-100 | DECAL,HOOD CREST (GRN) | 1 | $10.97 | |
| 4 | 4411-101 | DECAL,HOOD-CREST (WC TRAIL RED) | 1 | $10.97 | |
| 5 | 4406-384 | FENDER,FRONT-RH MARSH GRN | 1 | $82.95 | |
| 5 | 4406-385 | FENDER,FRONT-LH MARSH GRN | 1 | $82.95 | |
| 5 | 4406-374 | FENDER,FRONT-RH RED | 1 | $82.95 | |
| 5 | 4406-375 | FENDER,FRONT-LH RED | 1 | $82.95 | |
| 6 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 7 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 4406-280 | PANEL,LOWER SIDE-RH BLACK | 1 | $42.95 | |
| 9 | 4406-281 | PANEL,LOWER SIDE-LH BLACK | 1 | $42.95 | |
| 10 | 4411-046 | DECAL,SIDE LWR-RH (GRN) | 1 | $33.95 | |
| 10 | 4411-047 | DECAL,SIDE LWR-LH (GRN) | 1 | $33.95 | |
| 10 | 4411-056 | DECAL,SIDE LWR-RH (RED) | 1 | $33.95 | |
| 10 | 4411-057 | DECAL,SIDE LWR-LH (RED) | 1 | $33.95 | |
| 11 | 4406-388 | PANEL,REAR SIDE-RH GREEN | 1 | $66.95 | |
| 11 | 4406-389 | PANEL,REAR SIDE-LH GREEN | 1 | $66.95 | |
| 11 | 4406-378 | PANEL,REAR SIDE-RH RED | 1 | $66.95 | |
| 11 | 4406-379 | PANEL,REAR SIDE-LH RED | 1 | $66.95 | |
| 12 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 |
