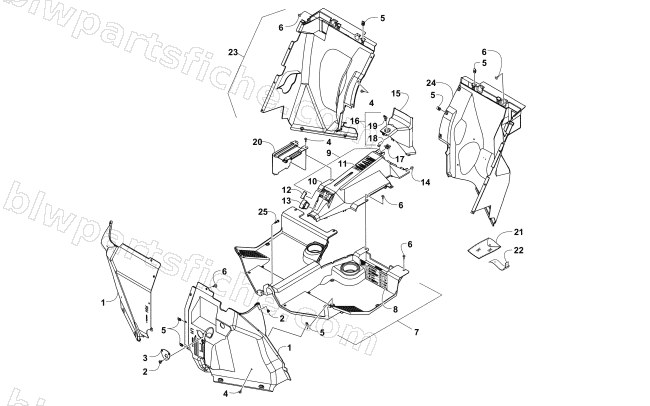

CONSOLE AND FLOOR PANEL ASSEMBLY
2014 WILDCAT TRAIL XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-270 | PANEL,FRONT SPLASH-RH | 1 | $82.95 | |
| 1 | 4406-271 | PANEL,FRONT SPLASH-LH | 1 | $82.95 | |
| 2 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 3 | 4406-346 | SHIELD,SPLASH-STEERING SHAFT | 1 | $2.47 | |
| 4 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 5 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 6 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 7 | 5506-604 | FLOOR W/ WARNING DECALS | 1 | $262.95 | |
| 8 | 3411-916 | DECAL,WARNING-TCLOC P145 (BLACK) | 1 | $12.35 | |
| 9 | 0417-024 | SEAL,FOAM (1/2"W X 1/4"T) | 1 | $0.95 | |
| 10 | 5506-603 | CENTER CONSOLE W/ WARNING DECALS | 1 | $91.95 | |
| 11 | 3411-780 | DECAL,WARNING-REVERSE | 1 | $10.97 | |
| 12 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 13 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 14 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 15 | 4406-268 | PANEL,OIL ACCESS | 1 | $20.63 | |
| 16 | 1423-218 | FASTENER,QUARTER TURN - ASSEMBLY | 1 | $4.54 | |
| 17 | 1423-208 | RECEIVER,QUARTER TURN FASTENER | 1 | $1.95 | |
| 18 | 1423-209 | RETAINER,QUARTER TURN FASTENER | 1 | $0.95 | |
| 19 | 1423-207 | KNOB,QUARTER TURN FASTENER | 1 | $2.75 | |
| 20 | 0445-104 | COVER,BATTERY | 1 | $13.73 | |
| 21 | 0544-025 | KIT,TOOL-P145 | 1 | $65.95 | |
| 22 | 0444-291 | RETAINER,VELCRO (2" X 9") | 1 | $10.97 | |
| 24 | 4406-273 | R/B 6406-927 | 1 | $109.95 | |
| 25 | 1423-281 | SCREW,BODY M6X1.0X25 W LEAD-IN BLACK | 1 | $1.37 |
